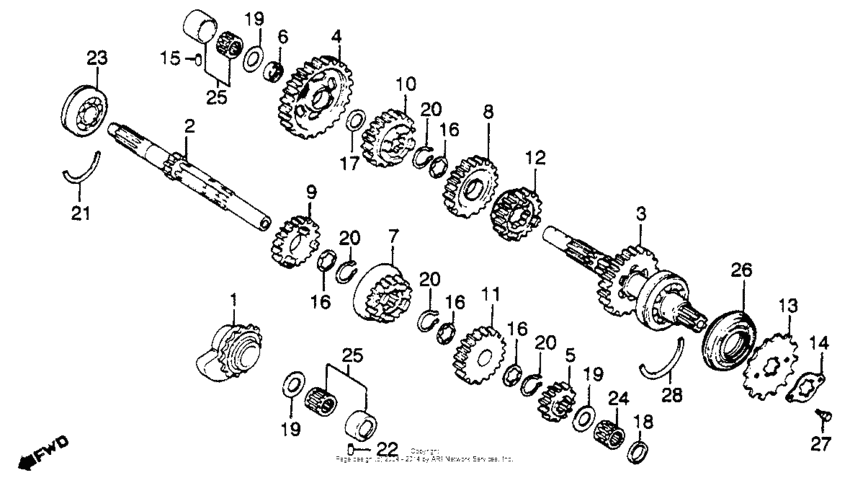

Transmission + rear balancer

Honda XL500R

Honda
Transmission + rear balancer
#oem кодцена
1
13420-MA0-000
Weight,balancer
2
23210-435-730
Mainshaft,trans.
3
23220-MA0-000
Shaft,trans
4
23411-429-000
Gear,ct/shaft,low
5
23421-MA0-000
Gear,sec.m/shaft
6
23422-428-000
Bush,20mm
7
23441-MA0-000
Gear,m/sha.third
8
23451-MA0-000
Gear,c/sha.third
9
23461-MC8-000
Gear,m/shiaft fou
10
23471-MC8-000
Gear,c/shaft four
11
23481-MA0-000
Gear,m/shaft top
12
23491-MA0-000
Gear,c/shaft top
13
23801-MK5-620
Sprocket,drive (1
14
23811-292-000
Plate,fixing
15
24261-283-000
Штифт
16
90451-413-000
Шайба
17
90454-428-000
Washer, thrust, 20mm
18
90454-429-000
Spacer,20mm
19
90458-292-000
Washer, thrust, 20mm
20
90601-107-000
Стопорное кольцо (25mm)
21
90601-393-000
Ring,set,56mm
22
90705-428-010
Pin,set bearing
23
91007-438-003
Подшипник (63/22)
замена
91011-428-008
Подшипник
24
91011-P48-008
Подшипник
25
91022-415-008
Подшипник (20mm)
26
91206-KB7-005
Oil seal,34x62x14
27
92101-06010-0A
Bolt, hex., 6x10
28
90602-428-000
Ring,set,62mm.
