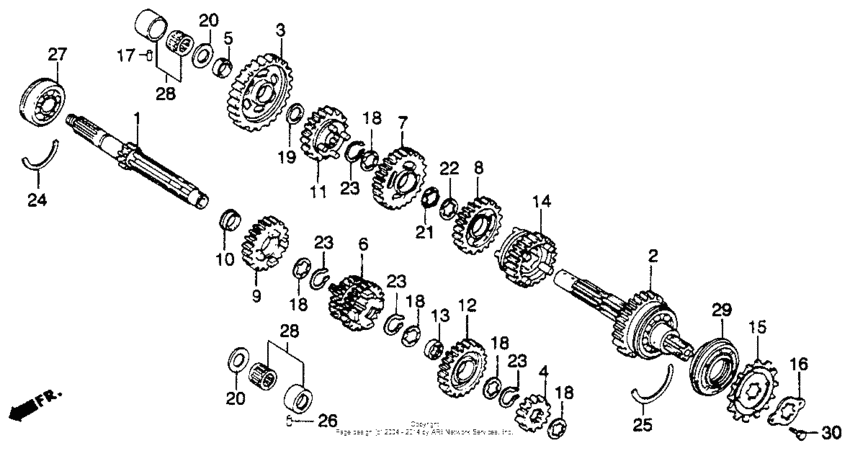

Transmission 82-83

Honda XL250R

Honda
Transmission 82-83
#oem кодцена
1
23211-KB7-000
Mainshaft,trans.
2
23220-KA6-000
Ct/shaft,trans
3
23411-KB7-000
Gear,ct/shaft low
4
23421-KA6-000
Gear,main.second
5
23422-428-000
Bush,20mm
6
23441-KB7-000
Gear,mainshaft
7
23451-KB7-000
Gear,ct/shaft 3rd
8
23461-KA6-000
Gear,fourth 32t
9
23471-KB7-000
Gear,m/shaft 5th
10
23472-473-000
Втулка
11
23481-KB7-000
Gear,ct/shaft 5th
12
23491-KB7-000
Gear,m/shaft 6th
13
23492-KB7-000
Bush,spline
14
23501-KB7-000
Gear,ct/shaft 6th
15
23801-429-010
Sprkt,drive,14t
16
23811-292-000
Plate,fixing
17
24261-283-000
Штифт
18
90451-413-000
Шайба
19
90454-428-000
Washer, thrust, 20mm
20
90458-292-000
Washer, thrust, 20mm
21
90461-286-000
Washer b (25mm)
22
90462-323-000
Washer, lock (25mm)
23
90601-107-000
Стопорное кольцо (25mm)
24
90601-393-000
Ring,set,56mm
25
90602-428-000
Ring,set,62mm.
26
90705-428-010
Pin,set bearing
27
91007-438-003
Подшипник (63/22)
28
91023-MM4-003
Bearing (20x34x16.8)
29
91206-KB7-005
Oil seal,34x62x14
30
92101-06010-0A
Bolt, hex., 6x10
