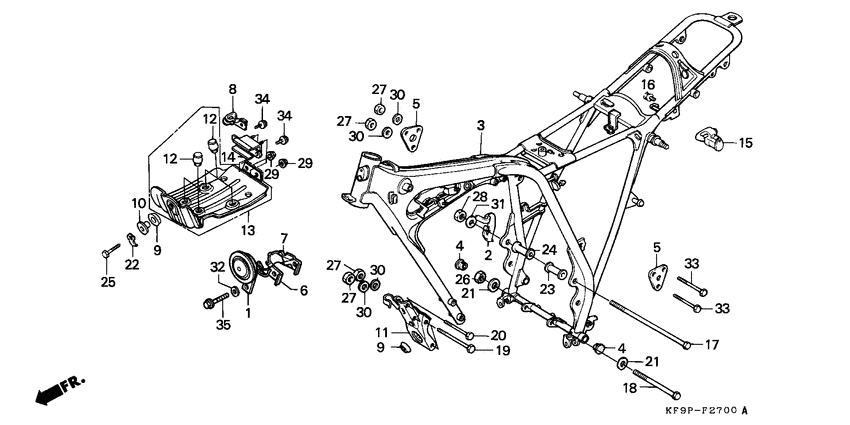

Frame body

Honda XL185

Honda
Frame body
#oem кодцена
1
38110-KF9-631
Horn comp( high )
2
45469-427-000
Clip,decompr wire
3
50100-KF9-630ZA
Body comp.*nh138*
4
50123-446-000
Plug,frame side
5
50138-427-000
Plate,eng.hanger
6
50153-KB1-710
Band a,horn
7
50154-437-940
Band b,horn
8
50294-437-000
Clip,drain tube
9
50325-437-000
Rubber.skid mount
10
50327-437-010
Collar,skid plate
11
50351-437-000ZH
Plate,fr.*nh-138*
12
50352-434-000
Rubber a, stopper
13
50355-KF9-740
Plate,skid
14
50361-437-600
Rubber, skid. mt
15
50710-382-671
Holder assy., helmet
16
90107-195-860
Bolt b (6mm)
замена
90106-428-000
Bolt b,special
17
90135-437-000
Bolt,hex.,10x220
18
90155-437-000
Болт
19
90157-437-000
Bolt, hex., 8x85
20
90159-437-000
Bolt, hex., 8x50
21
90401-437-000
Washer, plain, 10mm
22
90505-437-600
Washer, 8mm
23
90742-437-000ZJ
Collar,l.*nh146m*
24
90743-437-000ZJ
Collar,r.*nh146m*
25
92101-08032-0A
Bolt,hex,8x32
26
94001-100-000-S
Гайка
27
94030-08000
Гайка
28
9403010000
Nut, hex., 10mm
29
94050-06080
Гайка
30
94101-08000
Шайба
31
9410110000
Washer, plain, 10mm
32
94103-08700
Шайба
33
95301-080-650-0
Bolt,hex,8x65
34
95701-060-120-8
Болт
35
95701-0802007
Bolt, flange, 8x20
