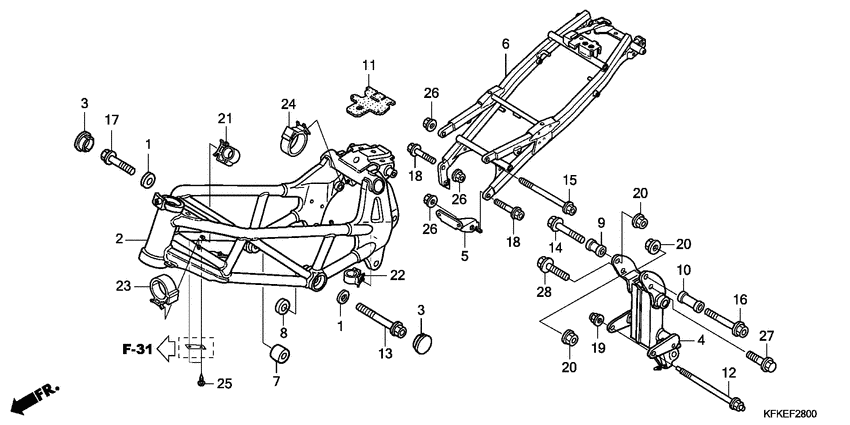

Frame body

Honda VTR250 VTR

Honda
Frame body
#oem кодцена
1
45224-KV3-951
Washer a, fr. disk
2
50100-KFK-630ZC
Body comp
3
50169-KW3-000ZB
Cap (33mm) *nh1*
4
50170-KFK-630
Bracket comp.
5
50191-KFK-630
Опора
6
50240-KFK-630
Seat rail comp.
7
50357-KFK-000
Collar,eng.hanger
8
50358-KFK-000
Collar,eng.hanger
9
50359-KFK-000
Collar,eng.hanger
10
50360-KFK-000
Collar,eng.hanger
11
50401-KFK-630
Крышка
12
90102-KFK-000
Bolt,flange 10x19
13
90103-KFK-000
Bolt,flange 12mm
14
90107-KFK-000
Bolt,flange dr,10
15
90108-GE1-670
Bolt, flg (10x155)
16
90108-KFK-000
Bolt,flange dr,12
17
90112-KFK-000
Bolt,flange,12x75
18
90133-MR7-000
Болт
19
90304-GE8-003
Nut, u, 10mm
20
90306-KF0-003
Nut, flange, 12mm
21
90690-GHB-641
Clip, cable, 10mm
22
90690-GHB-651
Clip, cable, 15mm
23
90690-GHB-661
Clip, cable, 20mm
24
90690-GHB-671
Clip, cable, 25mm
25
90841-001-000
Голвка вилта
26
94050-10000
Гайка
27
95801-120-350-0
Bolt,flange,12x35
28
95801-120-400-0
Bolt,flange,12x40
