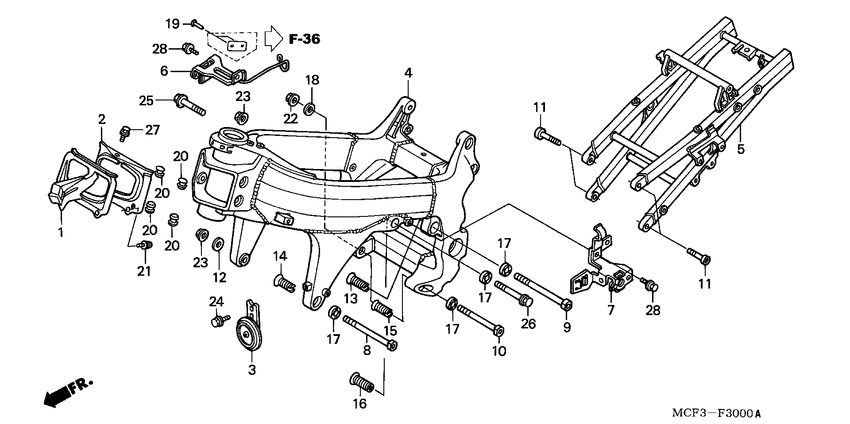

Frame body

Honda VTR1000SP VTR SP-1

Honda
Frame body
#oem кодцена
1
17263-MCF-000
Tube, fr. connecting
2
17264-MCF-D00
Holder,fr conn.tu
3
38110-GT8-621
Horn comp. (high) (mitsuba)
4
50100-MCF-D00
Frame body comp
5
50200-MCF-D00
Rail, seat
6
64515-MCF-D00
Stay b,r lower co
7
64516-MCF-D00
Stay b,l lower co
8
90102-MCF-000
Bolt (12x280)
9
90103-MCF-000
Bolt (12x294)
10
90104-MCF-000
Bolt, flg (10x249)
11
90108-MCF-000
Bolt, torx (10x32)
12
90122-GS3-000
Шайба
13
90152-MCF-000
Bolt (20x48.5)
14
90151-MCF-000
Bolt (20x68.5)
15
90153-MCF-000
Bolt (20x48.5)
16
90154-MCF-000
Bolt (20x68.5)
17
90201-MW0-000
Nut, lock (20mm)
18
90410-KR0-000
Шайба
19
90841-001-000
Голвка вилта
20
90851-MCF-000
Grommet, air duct
21
93401-0501207
Bolt-washer (5x12)
22
94050-10000
Гайка
23
9405012000
Nut, flange, 12mm
24
95701-060-120-7
Болт
25
95801-1205500
Болт
26
95801-1210000
Bolt, flg (12x100)
27
96001-060-100-7
Болт
28
96001-0601407
Bolt, flange, 6x14
