Дифференциал для мотоциклов Honda VT500C Shadow (1986)

Москва и регионы России

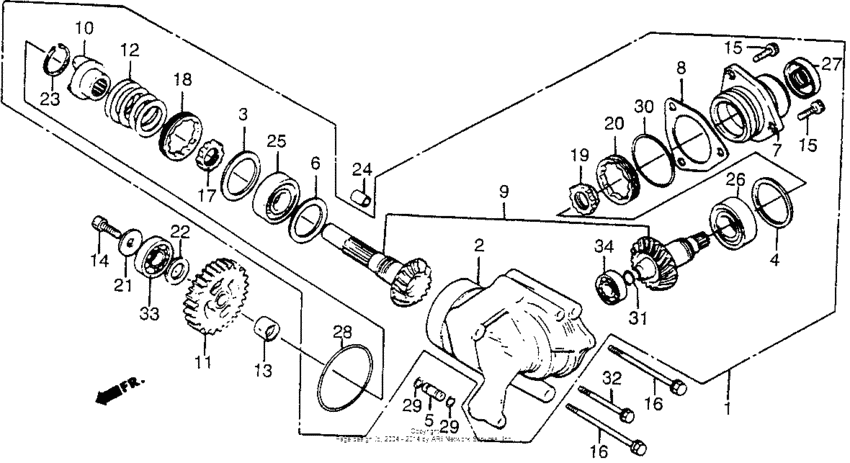

Дифференциал

Honda VT500C Shadow

Дифференциал

Дифференциал

1

2

3

4

5

6

6

6

6

6

6

6

7

8

8

8

8

8

9

10

11

12

13

14

15

15

16

16

17

18

19

20

21

22

23

24

25

26

27

28

29

29

30

31

32

33

34

#

oem код

название

цена

1

Case,side gear

Case,side gear

2

Case,side gear

Case,side gear

3

Spg a nut lock

Spg a nut lock

4

Spg b nut lock

Spg b nut lock

5

Ресивер

Ресивер

6

Shim (1.10)

Shim (1.10)

6

Shim (1.05)

Shim (1.05)

6

Shim (1.00)

Shim (1.00)

6

Shim (0.95)

Shim (0.95)

6

Shim (0.90)

Shim (0.90)

6

Shim (0.85)

Shim (0.85)

6

Shim (0.80)

Shim (0.80)

7

Hold,cross,brg.

Hold,cross,brg.

8

Shim,cross 0.4

Shim,cross 0.4

8

Shim,cross 0.35

Shim,cross 0.35

8

Shim.cross 0.3

Shim.cross 0.3

8

Shim,cross 0.25

Shim,cross 0.25

8

Shim,cross 0.2

Shim,cross 0.2

9

Shaft,set,drive

Shaft,set,drive

10

Lifter, damper

Lifter, damper

11

Gear,damper shaft

Gear,damper shaft

12

Spring,damper

Spring,damper

13

Collar (20x24x18.5)

Collar (20x24x18.5)

14

Болт (10mm)

Болт (10mm)

15

Болт (8x22)

Болт (8x22)

16

Bolt, flange, 8x95

Bolt, flange, 8x95

17

Nut, lock, 30mm

Nut, lock, 30mm

18

Nut, lock, 64mm

Nut, lock, 64mm

19

Nut, lock (28mm)

Nut, lock (28mm)

20

Nut, lock (60mm)

Nut, lock (60mm)

21

Washer, 10mm

Washer, 10mm

22

Washer a, thrust, 20mm

Washer a, thrust, 20mm

23

Стопорное кольцо (28mm)

Стопорное кольцо (28mm)

24

Установочный штифт

Установочный штифт

25

Bearing (5206)

Bearing (5206)

26

B/brg rad n/com

B/brg rad n/com

27

Oil seal (25x61x8.5)

Oil seal (25x61x8.5)

28

Прокладка

Прокладка

29

Прокладка

Прокладка

30

Прокладка

Прокладка

31

Clip, piston pin, 13mm

Clip, piston pin, 13mm

32

Bolt, flange, 8x55

Bolt, flange, 8x55

33

Bearing, radial ball, 6204

Bearing, radial ball, 6204

34

Bearing, radial ball, 6302

Bearing, radial ball, 6302
