Рама для мотоциклов Honda VT1100C3 Shadow Aero (2002)

Москва и регионы России

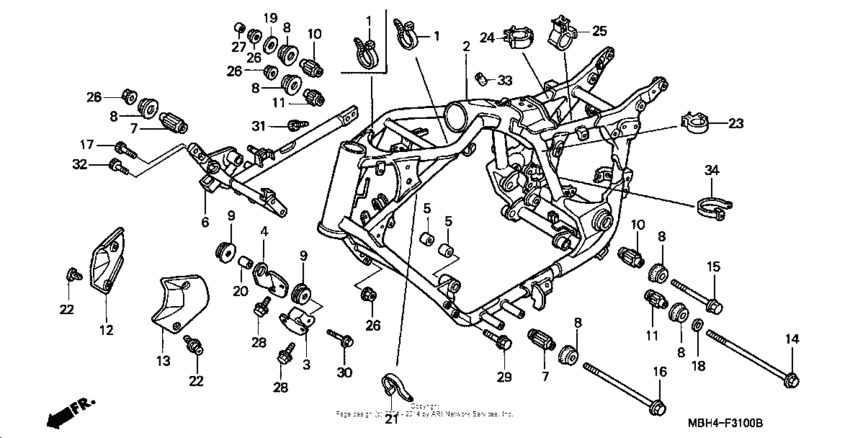

Рама

Honda VT1100C3 Shadow Aero

Рама

Рама

1

1

2

3

4

5

5

6

7

7

8

8

8

8

8

8

9

9

10

10

11

11

12

13

14

15

16

17

18

19

20

21

22

22

23

26

26

26

26

27

28

28

29

30

31

32

33

34

#

oem код

название

цена

1

Зажим

Зажим

2

50100-MBH-A20ZA

Frame *nh1*

Frame *nh1*

3

Bracket a, fr.

Bracket a, fr.

4

Brkt b, fr. eng hgr

Brkt b, fr. eng hgr

5

Collar, eng hgr

Collar, eng hgr

6

50174-MBH-000ZA

Sub-frame *nh1*

Sub-frame *nh1*

7

Rubber, mounting a

Rubber, mounting a

8

Rubber, mounting c

Rubber, mounting c

9

Rubber c, mounting

Rubber c, mounting

10

Rubber, mounting d

Rubber, mounting d

11

Rubber, mounting e

Rubber, mounting e

12

Cover, r. fr. side

Cover, r. fr. side

13

Cover, l. fr. side

Cover, l. fr. side

14

Bolt, flg (10x312)

Bolt, flg (10x312)

15

Bolt, flg (10x198)

Bolt, flg (10x198)

16

Bolt (10x285)

Bolt (10x285)

17

Bolt, socket (10x45)

Bolt, socket (10x45)

18

Washer, special, 11x21x2.3

Washer, special, 11x21x2.3

19

Шайба

Шайба

10.3X25

20

Collar, engine mounting

Collar, engine mounting

21

Band.harness

Band.harness

22

Клипс

Клипс

23

Clip, cable, 15mm

Clip, cable, 15mm

26

Гайка(10mm)

Гайка(10mm)

27

95005-800-0120M

Шланг (8x1000)

Шланг (8x1000)

28

95701-080-160-7

Bolt (95701-08016-07)

Bolt (95701-08016-07)

FLANGE, 8X16

29

Болт

Болт

30

Болт

Болт

31

Болт (10x25)

Болт (10x25)

32

Болт (10x35)

Болт (10x35)

33

Tube, vinyl (5x25)

Tube, vinyl (5x25)

34

Band, wire, 165mm (black)

Band, wire, 165mm (black)
