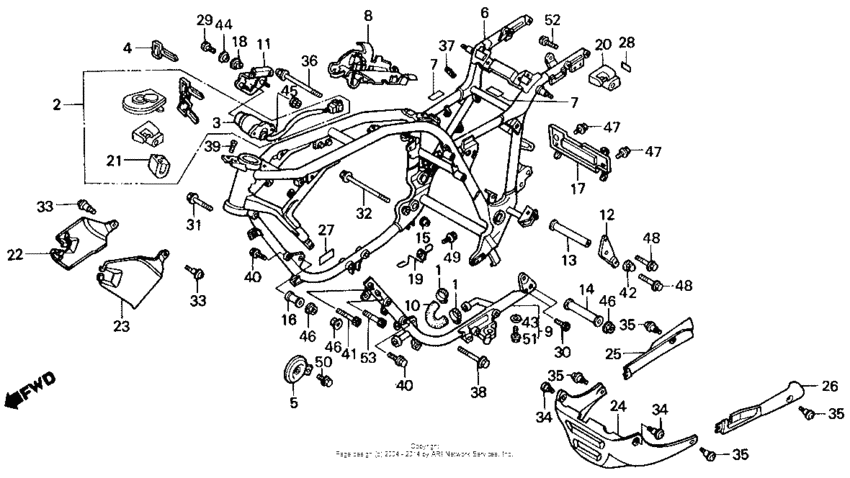

Рама

Honda VF750C Magna V45

Honda
Рама
#oem кодцена
1
19516-ML7-691
Хомут (24-32mm)
2
35010-MN0-680
Замок
3
35100-MN0-013
Выключатель
4
35122-KW3-771
Ключ
4
35121-KW3-771
Ключ
5
38120-MR5-661
Horn (low)
6
50100-MN2-710
Body comp.,frame
7
50159-KR3-300
Film, frame pipe
8
50189-MN0-010
Plate,f/tank ht.g
9
50210-MN0-680
Sub-frame
10
50242-MB0-000
Hose,under water
11
50245-MN0-000
Stay.,comb sw.
12
50356-MN0-000
Plate,rr.eng.hang
13
50361-MB2-000
Coller,up.eng hng
14
50362-MN0-000
Collar,rr.lh.eng.
15
50363-MB0-000
Collar c,hanger
16
50363-MN0-000
Collar,fr.rh eng.
17
50428-MN0-680
Plate a,heat guar
18
50451-GB6-920
Опора
19
50528-MN0-000
Guide,overflow tu
20
50710-086-007
Holder assy., helmet
21
53600-086-007
Lock, handlebar
22
61402-MN0-000
Cover,r.fr.side
23
61403-MN0-000
Cover l,fr.side
24
64230-MN2-000ZC
Cowl,unde*nh-1-z*
24
64230-MN2-000ZB
Cowl,un*r-107c-u*
25
64231-MN2-000ZC
Cowl r,un*nh-1-z*
25
64231-MN2-000ZB
Cowl,r.*r-107c-u*
26
64232-MN2-000ZC
Cowl l,un*nh-1-z*
26
64232-MN2-000ZB
Cowl,l.*r-107c-u*
27
87139-463-670
Label, high altitude
28
87511-KR3-670
Label, helmet holder
29
90004-ML4-610
Болт (6x18)
30
90101-MB0-000
Болт (10x25)
31
90102-MN0-000
Болт
32
90104-MB4-000
Bolt,flg.,10x355
33
90105-MB1-000
Screw, special, 5x12
34
90107-KR0-000
Bolt, fairing, 6mm
35
90108-MN0-000
Screw, pan, 5x13
36
90110-MN0-000
Bolt.flange 10x21
37
90126-MN0-000
Rubber,protector
38
90158-438-000
Bolt (10x50)
39
90164-028-000
Винт (6x12)
40
90165-MA3-660
Bolt,flange 8x62
41
90181-MN0-000
Bolt, socket (10x45)
42
90201-HA0-000
Гайка
43
90441-028-010
Washer, sealing, 6mm
44
90501-124-000
Washer, fr
45
94050-06080
Гайка
46
94050-10000
Гайка
47
95701-060-100-8
Болт
47
95700-060-100-8
Болт
48
95701-0801602
Болт
49
95701-060-100-8
Болт
50
95701-0801007
Bolt, flange, 8x10
51
96001-060-100-7
Болт
52
96600-0601007
Bolt, socket (6x10)
53
96700-100-401-7
Болт ,10X40
