Амортизатор для мотоциклов Honda VF700S Sabre (1985)

Москва и регионы России

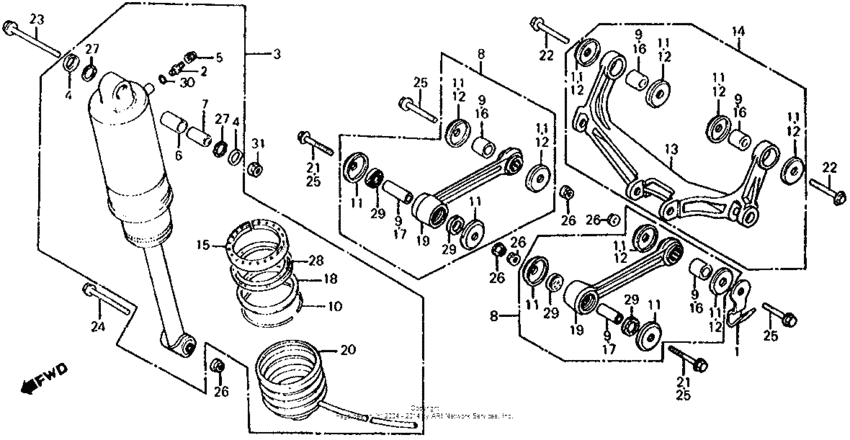

Амортизатор

Honda VF700S Sabre

Амортизатор

Амортизатор

1

2

3

4

4

5

6

7

8

8

10

12

12

12

12

12

12

12

12

14

15

16

16

16

16

17

18

20

21

21

22

22

23

24

25

25

25

25

26

26

26

26

26

27

27

28

29

29

29

29

30

30

31

#

oem код

название

цена

1

Clip,clutch cable

Clip,clutch cable

2

Valve, air

Valve, air

3

Cush.assy.,rear

Cush.assy.,rear

4

Cap (showa)

Cap (showa)

5

Чашка воздушного клапана

Чашка воздушного клапана

6

Bush,metal

Bush,metal

7

Collor,bush

Collor,bush

8

Rod,cush,conn

Rod,cush,conn

10

Ring b,stopper

Ring b,stopper

12

Seal cush arm

Seal cush arm

14

Arm assy cushion

Arm assy cushion

15

Case,guide

Case,guide

16

Collar,cush,arm

Collar,cush,arm

17

Collar conn rod

Collar conn rod

18

Ring,back up

Ring,back up

20

Boot comp.rr.cush

Boot comp.rr.cush

21

Болт

Болт

22

Bolt,flange ubs,1

Bolt,flange ubs,1

23

Bolt,flange10x190

Bolt,flange10x190

24

Болт

Болт

25

Bolt,ubs,10x48

Bolt,ubs,10x48

26

Nut, axle, 10mm

Nut, axle, 10mm

27

Dust seal(showa)

Dust seal(showa)

28

Сальник

Сальник

29

Dust seal, connecting rod pivot

Dust seal, connecting rod pivot

30

O-ring, 5.6x1.9 (arai)

O-ring, 5.6x1.9 (arai)

30

O-ring, 5.8x1.9

O-ring, 5.8x1.9

31

Nut, axle, 10mm

Nut, axle, 10mm
