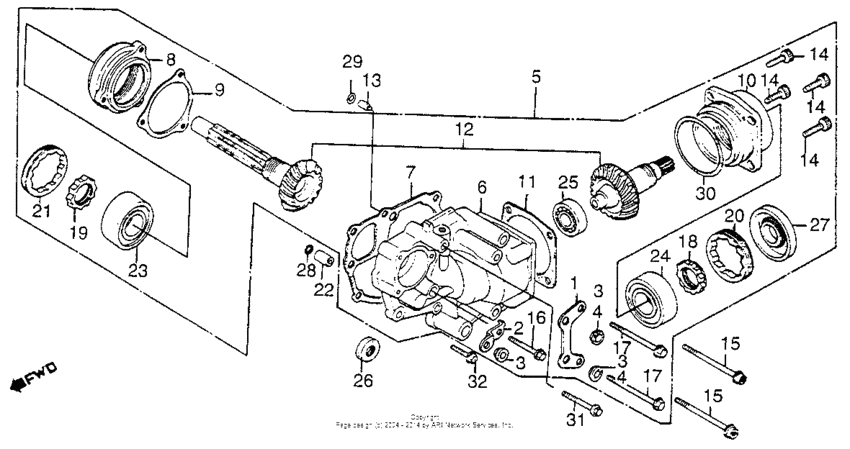

Дифференциал

Honda VF1100C Magna

Honda
Дифференциал
#oem кодцена
1
11342-MB4-770
Stay, rr. cover
2
11343-MB4-000
Stay b, rr. cover
3
11345-MB0-000
Grommet b, rr. cover
4
11346-MB4-770
Grommet, rr. cover
5
21100-MB4-770
Case,side gear
6
21200-MB4-000
Gear case,side
7
21291-MB0-306
Gasket, side gear
8
21301-MB4-000
Holder,conter brg
9
21325-MB4-000
Shim,ct/shaft(0.6
9
21324-MB4-000
Shim,countershaft
9
21323-MB4-000
Shim,ct/shaft(0.5
9
21322-MB4-000
Shim,countershaft
9
21321-MB4-000
Shim,ct/shaft(0.4
10
21371-MB0-000
Держатель
11
21385-MB0-770
Shim (0.60)
11
21384-MB0-770
Shim (0.55)
11
21383-MB0-770
Shim (0.50)
11
21382-MB0-770
Shim (0.45)
11
21381-MB0-770
Shim (0.40)
12
23200-MB4-770
Shaft set,cross
13
90049-MB0-000
Orifice,oil contl
14
90061-MB0-000
Болт (8x22)
15
90062-MB4-000
Bolt,flg,soc,8x90
16
90063-MB4-000
Bolt,ubs,8x65
17
90104-360-405
Болт
18
90241-MB0-000
Nut, lock, 30mm
19
90241-MB4-000
Nut,lock,35mm
20
90242-MB0-000
Nut, lock, 64mm
21
90242-MB4-000
Nut,lock,75mm
22
90703-MB0-000
Orifice,pin,10x16
23
91004-MB4-003
B/brg n/rad n/com
24
91012-MG7-003
Bearing (5206)
25
91011-MB0-003
Bearing, ball (6303)
26
91204-MB0-013
Oil seal (8x25x8)
27
91205-MG7-003
Oil seal (25x66x8.5)
28
91305-422-000
Прокладка
29
91308-MB0-003
O-ring, 5.7x2.2 (arai)
30
91314-MG7-003
Прокладка
31
95701-0807000
Bolt, flange, 8x70
32
96001-0602807
Болт
