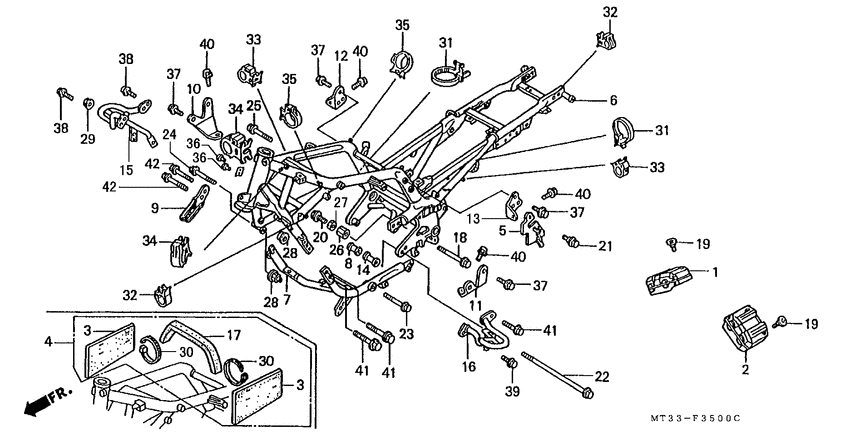

Frame body

Honda ST1100 (ABS/ TCS) Pan-European

Honda
Frame body
#oem кодцена
1
12411-MT3-000
Cover, r. fr. head
2
12421-MT3-000
Cover, l. fr. head
5
19180-MT3-000
Guard, l. rr. heat
6
50100-MY3-880
Body comp.,frame
7
50150-MT3-000
Frame, sub
8
50220-ML4-000
Collar, eng hgr
9
50238-MT3-000
Stay, r. middle cowl
10
50310-MT3-000
Bracket, r. eng hgr
11
50311-MT3-000
Bracket, l. eng hgr
12
50312-MT3-000
Brkt, r. rr. eng hgr
13
50313-MT3-000
Brkt, l. rr. eng hgr
14
50362-MT3-000
Манжета
15
64206-MY3-780
Guard, r. engine
16
64216-MT3-000
Защита Левая
18
90102-MT3-000
Bolt, flg (10x110)
19
90107-MM5-000
Винт (6x14)
20
90108-MT3-010
Bolt, eng hgr adj
21
90116-ME9-000
Болт
22
90126-MT3-000
Bolt, flg (12x345)
23
90152-MT3-000
Болт
24
90153-MT3-000
Болт
25
90154-MT3-000
Болт
26
90301-MT3-010
Nut, eng hgr adj
27
90302-MT3-010
Гайка
28
90304-GE8-003
Nut, u, 10mm
29
90306-181-761
Гайка (12mm)
31
90690-GHB-601
Clip, harness band (15)
32
90690-GHB-631
Clip, cable, 8mm
33
90690-GHB-641
Clip, cable, 10mm
34
90690-GHB-651
Clip, cable, 15mm
35
90690-GHB-661
Clip, cable, 20mm
36
90841-001-000
Голвка вилта
37
93407-080-200-7
Bolt-washer
38
95701-080-160-7
Bolt (95701-08016-07)
39
95701-1002007
Bolt, flange, 10x20
40
95701-1002507
Bolt, flange, 10x25
41
95701-1005007
Болт
42
95801-1006507
Болт
