Frame body

Honda ST1100 (ABS/ TCS) Pan-European

Honda

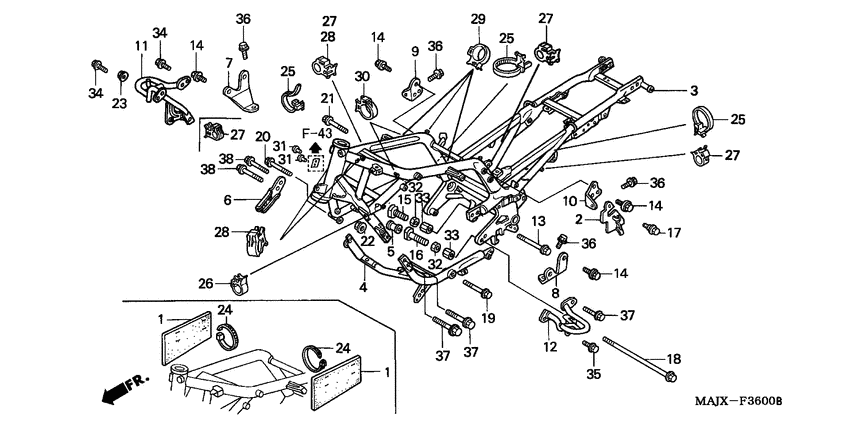

Frame body
#oem кодцена
2
19180-MT3-000
Guard, l. rr. heat
3
50100-MAJ-A30
Рама
4
50150-MT3-000
Frame, sub
5
50220-ML4-000
Collar, eng hgr
6
50238-MT3-000
Stay, r. middle cowl
7
50310-MAJ-G40
Brkt, r. fr. eng hgr
8
50311-MAJ-G40
Brkt, l. fr. eng hgr
9
50312-MAJ-G20
Brkt, r. rr. eng hgr
10
50313-MAJ-G20
Brkt, l. rr. eng hgr
11
64206-MAJ-G10
Guard, r. engine
12
64216-MT3-000
Защита Левая
13
90102-MT3-000
Bolt, flg (10x110)
14
90103-MW3-670
Bolt, flange, 8x20
15
90108-MAJ-G20
Bolt b, eng hgr adj
16
90110-MAJ-G20
Bolt a, eng hgr adj
17
90116-ME9-000
Болт
18
90126-MT3-010
Bolt, flg (12x348)
19
90152-MT3-000
Болт
20
90153-MT3-000
Болт
21
90154-MT3-000
Болт
22
90304-GE8-003
Nut, u, 10mm
23
90306-181-761
Гайка (12mm)
25
90690-GHB-601
Clip, harness band (15)
26
90690-GHB-631
Clip, cable, 8mm
27
90690-GHB-641
Clip, cable, 10mm
28
90690-GHB-651
Clip, cable, 15mm
29
90690-GHB-661
Clip, cable, 20mm
30
90690-GHB-671
Clip, cable, 25mm
32
94001-182000S
Nut, hex. (18mm)
33
94002-180000S
Nut, hex. (18mm)
34
95701-080-160-7
Bolt (95701-08016-07)
35
95701-1002007
Bolt, flange, 10x20
36
95701-1002507
Bolt, flange, 10x25
37
95701-1005007
Болт
38
95801-1006507
Болт
