Front fork/steering stem для мотоциклов Honda SK50M (1993)

Москва и регионы России

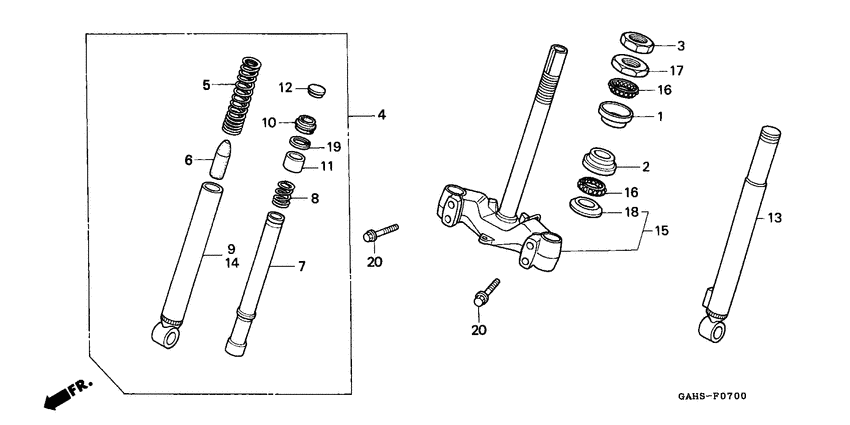

Front fork/steering stem

Honda SK50M

Front fork/steering stem

Front fork/steering stem

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

16

17

18

19

20

20

#

oem код

название

цена

1

Race, steering upper ball

Race, steering upper ball

2

Race, steering under ball

Race, steering under ball

3

Nut, steering stem lock

Nut, steering stem lock

замена

Nut,strg,stem lok

Nut,strg,stem lok

4

51400-GAH-601ZA

Fork assy r fr nh322

Fork assy r fr nh322

5

Spring,fr.cushion

Spring,fr.cushion

6

Rubber,stopper

Rubber,stopper

7

Pipe comp. fr. fork

Pipe comp. fr. fork

8

Пружина

Пружина

9

51421-GW0-013ZF

Case comp*nh322m*

Case comp*nh322m*

10

Пыльник

Пыльник

11

Guide,pipe

Guide,pipe

12

Cap, fr. fork

Cap, fr. fork

13

51500-GAH-601ZA

Fork assy l fr nh322

Fork assy l fr nh322

14

51521-GW0-023ZF

Case comp*nh322m*

Case comp*nh322m*

15

Stem set,fr.

Stem set,fr.

16

Ball assy., steering steel

Ball assy., steering steel

17

Race, steering top cone

Race, steering top cone

18

Race, steering bottom cone (mitsuboshi)

Race, steering bottom cone (mitsuboshi)

19

Стопорное кольцо

Стопорное кольцо

20

Болт

Болт
