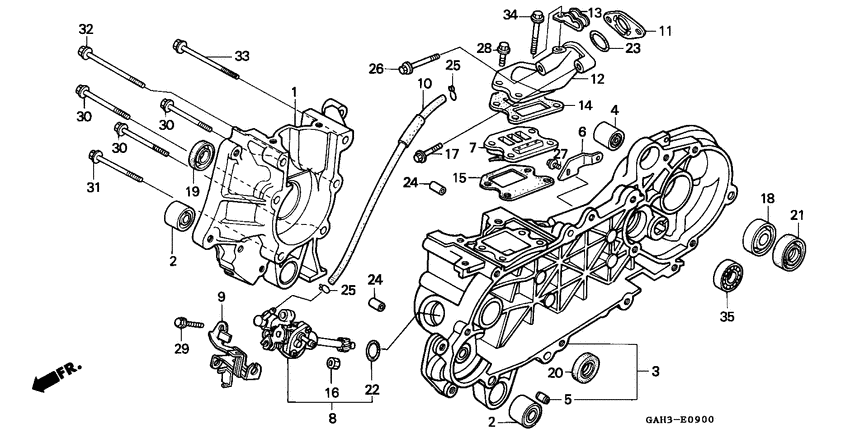

Crankcase/oil pump

Honda SK50M

Honda
Crankcase/oil pump
#oem кодцена
1
11101-GW0-020
Superceded
2
11102-GW0-003
Bush, eng hgr rub
3
11200-GAH-720
Картер двигателя
4
11203-GC7-300
Bush, rr. (lower)
5
11205-GAH-003
Втулка
6
11207-GW0-000
Кронштейн
7
14100-GAH-000
Valve comp.,reed
8
15100-GAH-721
Масляная помпа
9
15110-GW0-010
Plate comp.,setti
10
15525-GAH-000
Tube comp.,oil pa
11
16211-GAH-000
Insulator,carbure
12
17101-GW0-000
Pipe,in.
13
17104-GAH-000
Stay,tube
14
17111-GAH-A00
Gasket a, in. pipe
замена
17111-GAH-000
Gasket a,in.pipe
15
17112-GAH-A00
Gasket b, in. pipe
замена
17112-GAH-000
Gasket b,in.pipe
16
90201-GR2-000
Nut,special,6mm
17
91001-GW0-000
Bolt,flange 6x37
18
42630-GK4-003
Brg radial ball
замена
91028-GS7-900
Bearing (6203uu)
19
91201-GK8-003
Сальник
20
91202-GAH-721
Oil seal,19.4x31x
21
91254-GE8-005
Oil seal (24x40x7)
22
91301-147-023
Прокладка
замена
91301-166-000
O-ring,18.3x2.3
23
91304-GB0-910
Прокладка
24
9430108200
Dowel pin, 8x20
25
9500202650
Зажим
26
95701-0608000
Болт
27
96001-060-140-0
Болт
28
96001-060-280-0
Болт
29
96001-0603200
Bolt, flange, 6x32
30
96001-060-400-0
Болт
31
96001-060-450-0
Болт
32
96001-060-600-0
Болт
33
96001-0607500
Болт
34
96001-0608000
Болт
35
96100-6201300
Bearing (6201)
