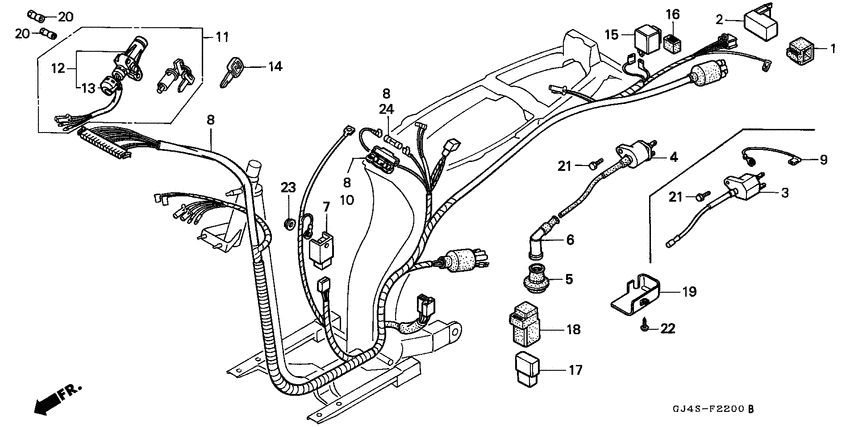

Harness wire

Honda SH75 Scoopy

Honda
Harness wire
#oem кодцена
1
30406-471-000
Подвеска
2
30410-187-008
Блок конденсаторного зажигания
3
30510-GJ3-600
Coil comp ign
5
30605-GJ4-760
Seal,high tension
6
30700-KG8-901
крышка
замена
30700-KG8-900
Cap assy.,noise s
7
31600-GC1-701
Rectifier,regulat
8
32100-GJ4-760
Harness wire
9
32101-446-850
Sub-cable a
10
32120-155-000
Case,7a fuse
11
35010-GJ4-760
Key set
12
35100-GJ4-760
Switch assy.,comb
13
35102-GJ4-710
Cover,comb.sw.
14
35122-443-812
Key no.2 blank
14
35121-443-812
Key blank
15
38301-KK4-024
Relay comp,winker
15
38301-KK4-014
Relay,winker
15
38301-GE8-008
Relay comp,winker
16
38306-KK4-000
Suspension, winker relay (mitsuba)
16
38306-GE8-008
Suspension, winker relay (denso)
17
38501-KG8-004
Relay comp., starter (omron)
18
38506-KG8-004
Suspension, starter relay (omron)
19
80115-GJ3-600
Cover ign.,coil
20
90101-GJ3-600
Nut special 8mm
21
92101-05020-0A
Bolt, hex., 5x20
замена
92000-05020-0A
Bolt, hex., 5x20
22
93903-44480
Болт
23
94050-06000
Гайка
24
9820010700
Предохранитель
