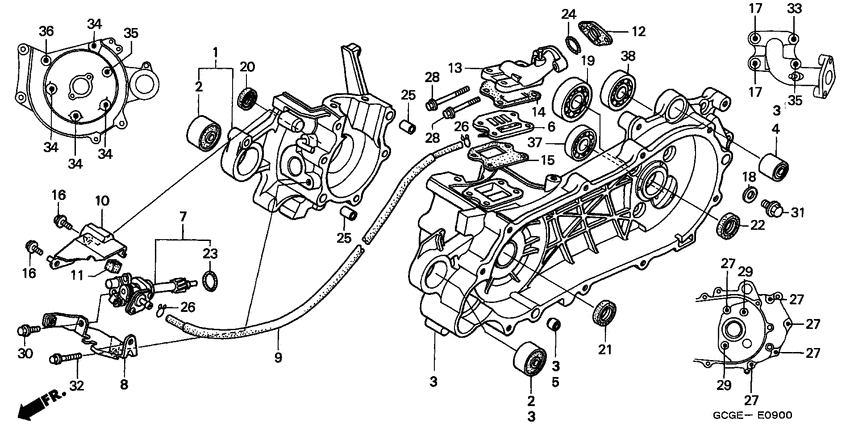

Crankcase/oil pump

Honda SGX50S Sky

Honda
Crankcase/oil pump
#oem кодцена
1
11100-GCG-305
Crankcase comp.
2
11102-GCG-931
Втулка
3
11200-GCG-305
Crankcase comp.
4
11203-GCG-931
Втулка
5
11205-GAH-003
Втулка
6
14100-GAH-000
Valve comp.,reed
7
15100-GCG-931
Масляная помпа
8
15110-GAV-700
Plate comp,set
9
15525-GCG-930
Tube comp,oil pas
10
15531-GAV-700
Insulator,oil pum
11
15532-GAV-700
Rubber,oil pump i
12
16211-GAH-000
Insulator,carbure
13
17100-GCG-930
Pipe comp,inlet
14
17111-GCG-931
Gasket,inlet pipe
15
17112-GCG-931
Gasket,inlet pipe
16
90002-GAV-701
Болт (6x18)
17
96001-060-350-0
Bolt, flange, 6x35
18
90481-GW3-000
Washer, sealing, 6.5mm
19
91004-KEE-730
Brg,ball radial 6
20
91201-GCG-931
Oil seal,15x30x7
21
91202-GCG-931
Oil seal,20x31x7
22
91204-KBN-901
Oil seal.,17x30x6
23
91301-147-023
Прокладка
замена
91301-166-000
O-ring,18.3x2.3
24
91304-GCG-931
O-ring,20.6x1.9
25
94301-10200
Палец
26
9500202650
Зажим
27
95701-0602800
Bolt, flange, 6x28
28
95701-060-300-8
Болт
29
95701-0603500
Bolt, flange, 6x35
30
95701-0801200
Bolt, flange, 8x12
31
96001-060-120-0
Болт
32
96001-060-280-0
Болт
33
96001-060-350-0
Bolt, flange, 6x35
34
96001-0605500
Болт
35
96001-060-650-0
Болт
36
96001-060-950-0
Bolt,flange,6x95
37
96100-6201300
Bearing (6201)
38
96100-620-230-0
B/brg rad n/com
