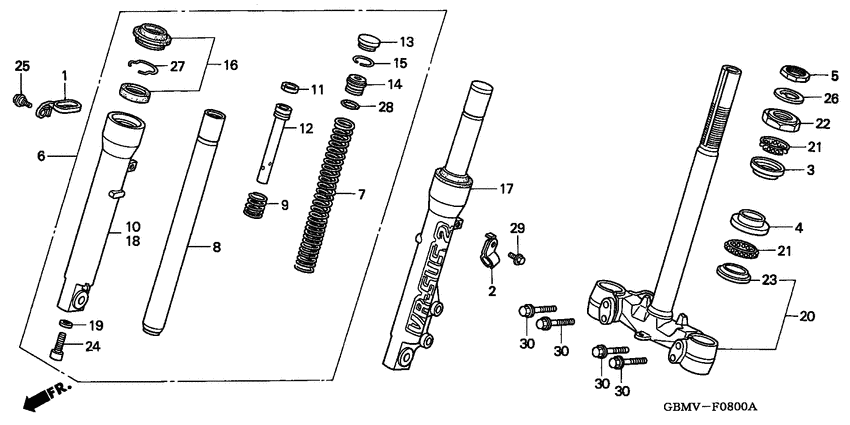

Front fork/steering stem

Honda SFX50MM

Front fork/steering stem

Front fork/steering stem

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

21

22

23

24

25

26

27

28

29

30

30

30

30

#

oem код

название

цена

1

Guide speedometer ca

Guide speedometer ca

2

Clamper fr brk hose

Clamper fr brk hose

3

Race, steering upper ball

Race, steering upper ball

4

Race, steering under ball

Race, steering under ball

5

Nut, steering stem lock

Nut, steering stem lock

6

Fork assy r fr nh1

Fork assy r fr nh1

7

Spring,fr fork

Spring,fr fork

8

Pipe comp,fr fork

Pipe comp,fr fork

9

Spring,rebound

Spring,rebound

10

Case,r fr bottom

Case,r fr bottom

11

Ring,piston

Ring,piston

12

Pipe seat fork

Pipe seat fork

13

Cap,fork pipe

Cap,fork pipe

14

Seat,spring upper

Seat,spring upper

15

Кольцо стопорное

Кольцо стопорное

16

Seal set fr. fork

Seal set fr. fork

17

Fork assy,l front

Fork assy,l front

18

Case,l fr bottom

Case,l fr bottom

19

Washer,special,10

Washer,special,10

20

Stem set steering

Stem set steering

21

Ball assy., steering steel

Ball assy., steering steel

22

Race, steering top cone

Race, steering top cone

23

Race, steering bottom cone (mitsuboshi)

Race, steering bottom cone (mitsuboshi)

24

Bolt socket fork fr.

Bolt socket fork fr.

25

Bolt, special, 6mm

Bolt, special, 6mm

26

Шайба

Шайба

замена

Шайба

Шайба

27

Ring,oil seal sto

Ring,oil seal sto

28

Кольцо

Кольцо

29

95701-060-120-0

Болт

Болт

FLANGE, 6X12

30

Болт

Болт
