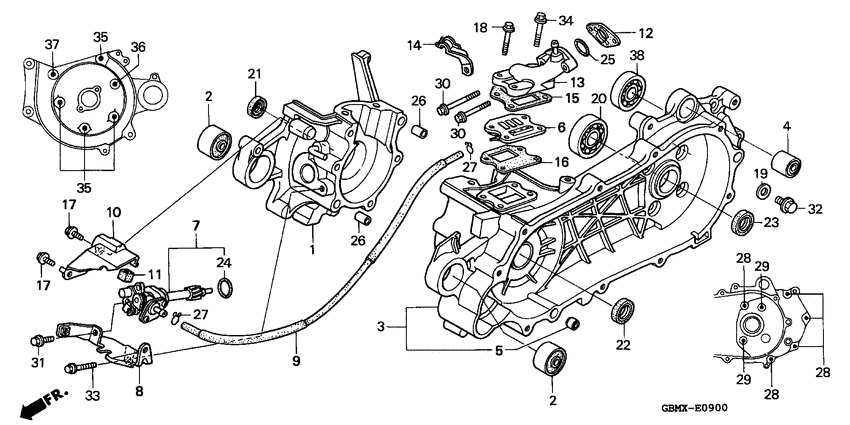

Crankcase/oil pump

Honda SFX50S

Honda
Crankcase/oil pump
#oem кодцена
1
11100-GBM-315
Crankcase comp.
2
11102-187-003
Bush, engine hanger rubber
3
11200-GAV-345
Crankcase comp.
4
11203-GC7-300
Bush, rr. (lower)
5
11205-GAH-003
Втулка
6
14100-GAH-000
Valve comp.,reed
7
15100-GAV-701
Масляная помпа
8
15110-GAV-700
Plate comp,set
9
15525-GBM-850
Tube comp,oil pas
10
15531-GAV-700
Insulator,oil pum
11
15532-GAV-700
Rubber,oil pump i
12
16211-GAH-000
Insulator,carbure
13
17100-GBM-850
Pipe comp,inlet
14
17104-GBM-850
Clamper oil pump
15
17111-GAH-A00
Gasket a, in. pipe
замена
17111-GAH-000
Gasket a,in.pipe
16
17112-GW3-710
Gasket,inlet pipe
17
90002-GAV-701
Болт (6x18)
18
96001-060-350-0
Bolt, flange, 6x35
19
90481-GW3-000
Washer, sealing, 6.5mm
20
91004-GM9-701
Bearing, radial ball, 6203 (ntn)
21
91201-GW2-000
Oil seal,15x25.5x
22
91202-KBN-922
Oil seal,20x31x7
замена
91202-GA7-005
Oil seal,20x31x7
23
91204-KBN-901
Oil seal.,17x30x6
24
91301-147-023
Прокладка
замена
91301-166-000
O-ring,18.3x2.3
25
91304-GB0-910
Прокладка
26
94301-10200
Палец
27
9500202650
Зажим
28
95701-0602800
Bolt, flange, 6x28
29
95701-0603500
Bolt, flange, 6x35
30
95701-060-400-8
Болт
31
95701-0801200
Bolt, flange, 8x12
32
96001-060-120-0
Болт
33
96001-060-280-0
Болт
34
96001-060-350-0
Bolt, flange, 6x35
35
96001-0605500
Болт
36
96001-060-650-0
Болт
37
96001-0608500
Болт
38
96100-620-230-0
B/brg rad n/com
