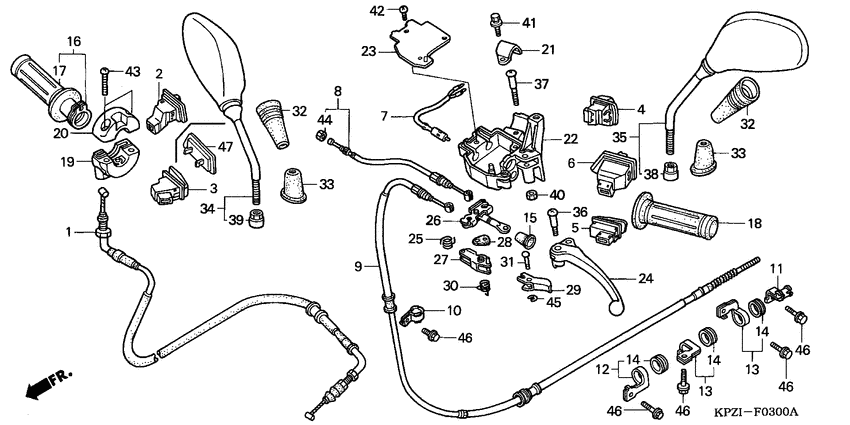

Handle lever/switch/cable

Honda SES125 Dylan

Honda
Handle lever/switch/cable
#oem кодцена
1
17910-KPZ-900
Cable comp,throt
3
35160-KFG-003
Switch unit, starter
4
35170-KFG-003
Sw unit,dimmer&pa
5
35180-GAV-701
Sw.unit,horn
6
35200-GAV-701
Sw.unit,winker
7
35340-GZ9-003
Переключатель
8
43440-KGF-900
Cable comp,fr brk
9
43450-KGF-900
Cable comp,rr brk
10
43455-GCK-000
Clamper,rr brk ca
11
43456-KGF-900
Clamper,rr brk ca
12
43460-KEY-900
Guide assy,brk ca
13
43460-KGF-900
Guide assy,brk ca
14
45466-329-000
Guide, cable (inner)
15
45504-410-003
Ботинок
16
53140-KPZ-900
Grip comp,throt
17
53165-KTG-305
Hndl grip,r (coo)
замена
53165-GW2-000
Grip,r.handle
18
53166-GW2-000
Grip,l.handle
19
53167-GAH-700
Housing,und throt
20
53168-GAH-700
Housing, upper throttle
21
53171-GBL-870
Band,handle brkt
22
53172-GCS-000
Bracket,l brake l
23
53173-KGF-900
Cover,l brk lever
24
53178-GCS-000
Lever,l strg hand
25
53182-GCS-000
Spring,rr brk loc
26
53184-KGF-900
Equalizer comp
27
53185-KGF-900
Arm comp,rr brk l
28
53186-GCS-000
Cover,rr brk lock
29
53187-KGF-900
Lever,brake lock
30
53188-GCS-000
Spg,brk lock leve
31
53189-KGF-900
Pin,brk lock leve
32
88113-KPR-900
Boot, mirror (upper)
33
88114-KPR-900
Boot, mirror (lower)
34
88210-KPR-900
Mirror comp,r
35
88220-KPR-900
Mirror comp,l
36
90113-GE8-000
Болт
37
90115-GBL-870
Болт
38
90134-GM8-000
Гайка
39
90135-KGF-900
Nut,lock lh
40
90302-435-761
Nut, hex., 5mm
41
93401-060-200-0
Bolt-washer
42
93500-050-120-H
Болт
43
93500-050220A
Screw, pan, 5x22
44
94002-080-000-S
Гайка
45
94540-03018
Е-Кольцо
46
95701-060-120-0
Болт
47
53207-KPR-970
Cap,handle cover
