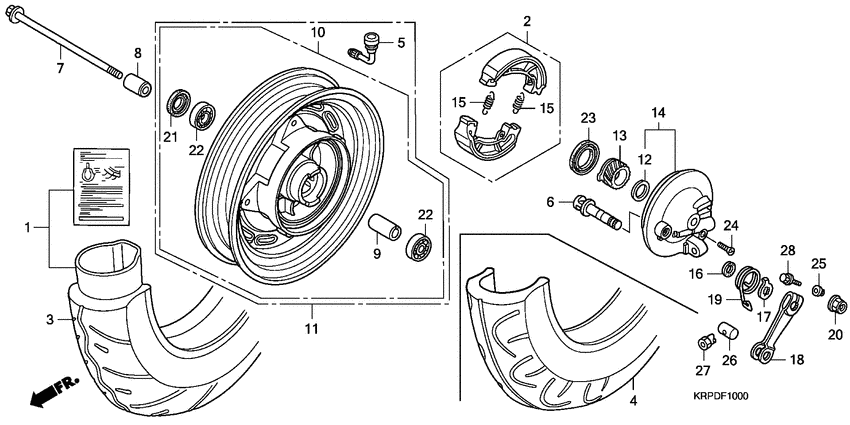

Transom + tube

Honda SCV100F Beat

Honda
Transom + tube
#oem кодцена
1
06427-KPL-840
Комплект трубки
2
06430-KTC-900
Shoe set
3
42711-KRP-901
Tire
4
42711-KRP-982
Tire(irc)
4
42711-KRP-981
Tire,(dun)
5
42753-KRP-980
Valve,rim
6
43141-KPL-900
Cam,rear brake
7
44301-KPL-900
Axle,fr wheel
8
44311-KPL-900
Collar,fr wheel s
9
44620-KPL-900
Collar fr wheel d
10
44650-KRP-S00
Wheel sub assy.
11
44650-KRP-S20
Wheel sub assy.
12
44809-KPL-900
Washer,spdmt gear
13
44811-KPL-900
Gear,spdmt
14
45010-KRP-S10
Panel sub comp.
15
45133-KPL-900
Boot,pin
16
45134-250-000
Сальник
17
45145-KPL-900
Indicator,front b
18
45410-KRP-980
Arm,fr brake
19
45435-KPL-900
Spg.brk arm retur
20
90306-KPL-900
Nut,flg spl 12mm
21
90754-KPL-900
Seal,dust,20x32x5
22
90912-KPL-900
Bearing,ball radi
23
91253-KPL-900
Seal,dust,41x60x7
24
93700-050180A
Screw, oval (5x18)
25
94050-06000
Гайка
26
9501532001
Соединитель
27
9501542000
Nut b, brake rod adjusting
28
95701-0603200
Bolt, flange, 6x32
