Rear wheel complete assy

Honda SCV100F Beat

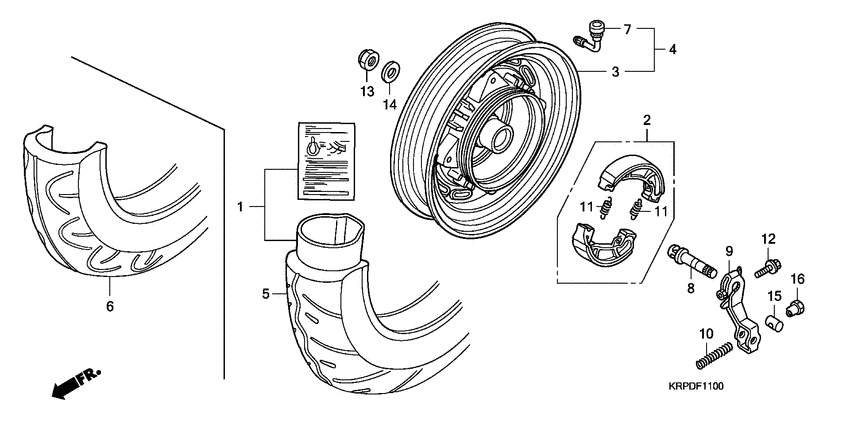

Rear wheel complete assy

Rear wheel complete assy

1

2

3

4

5

6

6

7

8

9

10

11

11

12

13

14

15

16

#

oem код

название

цена

1

Комплект трубки

Комплект трубки

TUFF UP (3.50-10)

2

Shoe set

Shoe set

BRAKE

3

Wheel sub assy.

Wheel sub assy.

RR.

4

Wheel sub assy.

Wheel sub assy.

RR.

5

Tire

Tire

3.50-10 MRF

6

Tire(irc)

Tire(irc)

6

Tire,(dun)

Tire,(dun)

7

Valve,rim

Valve,rim

8

Cam,rear brake

Cam,rear brake

9

Arm,rear brake

Arm,rear brake

10

Spg,rr brk arm

Spg,rr brk arm

11

Boot,pin

Boot,pin

12

Bolt,flange,6x30

Bolt,flange,6x30

13

Nut,hex spl 16mm

Nut,hex spl 16mm

14

Washer,16mm

Washer,16mm

15

Соединитель

Соединитель

16

Nut b, brake rod adjusting

Nut b, brake rod adjusting
