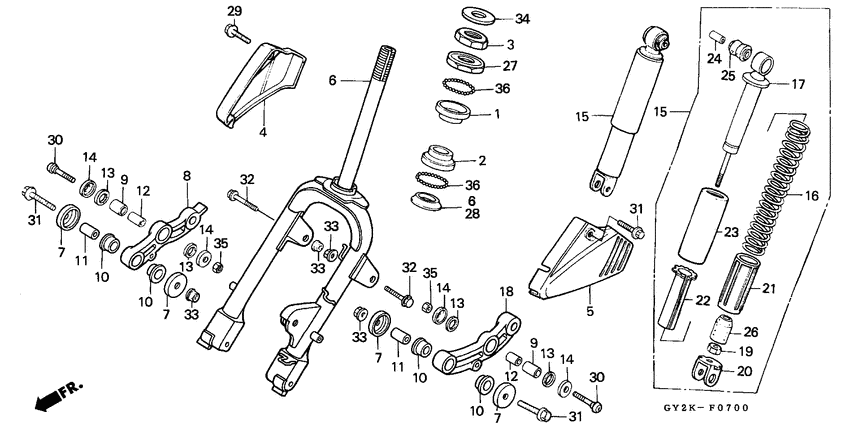

Front fork/front cushion

Honda SA75

Honda
Front fork/front cushion
#oem кодцена
1
50301-GM0-000
Race, steering upper ball
замена
50301-147-003
Шайба
2
50305-GC8-003
Шайба
3
50306-147-003
Гайка
4
51103-GR0-000ZA
Cover,r.pivo*nh1*
5
51104-GR0-000ZA
Cover,l.pivo*nh1*
6
51110-GY2-305ZA
Fork set,fr.*nh1*
7
51305-GM9-015
Dust seal,fr.arm
замена
51305-GM9-003
Dust seal,fr.arm
8
51311-GM9-000
Pivot arm,r.fr
9
51312-GN2-003
Bush, fr. fork
10
51314-GFZ-J01
Bushfr f0rk und
замена
51314-GM9-711
Bush,fr.fork unde
11
51334-GM9-000
Collar,fr,fork
12
51334-GN2-000
Collar, fr
13
51335-001-000
Dustseal, cushion
14
51336-001-000
Крышка
15
51400-GY2-901ZA
Cushion assy*nh1*
16
51401-GY2-901
Spring,fr.cushion
17
51410-GY2-901
Damper comp,fr.
18
51411-GM9-000
Pivot arm,l fr
19
51413-GB4-003
Гайка блокирующая,8MM
20
51420-GN2-003
Joint,fr.cush.bot
21
51421-GG2-003
Case under
22
51458-GN2-003
Guide,fr cush spg
23
51460-GG2-003ZF
Case.cush up*nh-1
24
52486-074-000
Collar, cushion rubber bush (showa)
25
52489-331-003
Rubber a, joint
26
52517-KJ9-003
Rubber,stopper
27
53211-GC8-003
Race, steering top cone
28
53212-GC8-003
Кольцо
29
90003-GE0-000
Bolt, rr. fender
30
90104-KS4-000
Болт
31
90111-GC3-000
Bolt, flange, 8x48
32
90118-471-000
Bolt, flange, 8x37
33
90309-428-731
Nut, flange (self-lock) (m8x1.25)
замена
90309-KF0-003
Nut, flange, 8mm
34
90402-KM1-670
Шайба
35
94002-080-000-S
Гайка
36
9621105000
Ball, steel, #5 (5/32)
