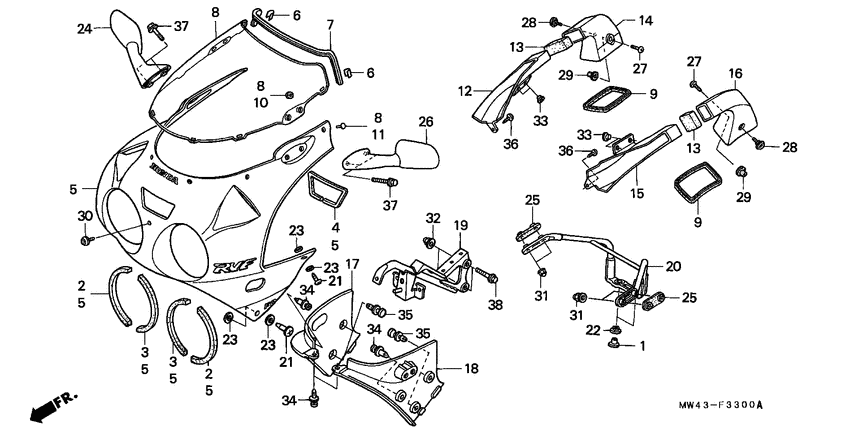

Upper cowling assy

Honda RVF750 RFV RC45

Honda
Upper cowling assy
#oem кодцена
1
17513-MR7-000
Втулка (6мм)
2
33102-MW4-300
Seal, headlight
3
33103-MW4-300
Seal, headlight
4
33104-MW4-620
Seal,position lam
5
64100-MW4-620ZA
Set illust*type1*
6
64102-MA3-720
Clip, screen molding
7
64105-MW4-000
Molding, windscreen
8
64110-MW4-405
Стелко в сборе
9
64121-MW4-000
Rubber, side seal
10
64206-MJ0-000
Гайка
11
64206-ML0-700
Pin, screen setting
12
64260-MW4-000
Duct a, r. cowl air
13
64261-MW4-000
Filter, air duct
14
64265-MW4-000
Duct b, r. cowl air
15
64270-MW4-000
Duct a, l. cowl air
16
64275-MW4-000
Duct b, l. cowl air
17
64325-MW4-000ZB
Cowl, r. *r127*
18
64375-MW4-000ZB
Cowl, l. *r127*
19
64501-MW4-000
Stay, cowl main
20
64502-MW4-000
Stay, back mirror
21
64507-MN4-000
Болт
22
64508-MR7-000
Опора
23
64509-KE8-700
Втулка 6мм
24
88110-MW0-791ZA
Mirror, r. *nh1*
25
88116-MW0-000
Опора
26
88120-MW0-791ZA
Mirror, l. *nh1*
27
90105-MM4-000
Screw, pan, 6x10
28
90109-SB6-000
Болт
29
90111-KW3-003
Гайка 5мм
30
90112-MT4-000
Bolt, cowl setting
31
90201-428-900
Nut, cap, 6mm
32
90443-KF9-900
Гайка (8mm)
замена
90301-SA0-000
Гайка
33
90522-170-700
Collar, gearshift lever setting
34
90683-GR1-003
Клипс
35
91549-MW0-790ZA
Clip *nh1*
36
93903-24380
Болт
37
96001-060-350-0
Bolt, flange, 6x35
38
96400-080-280-7
Bolt,flange,8x28
