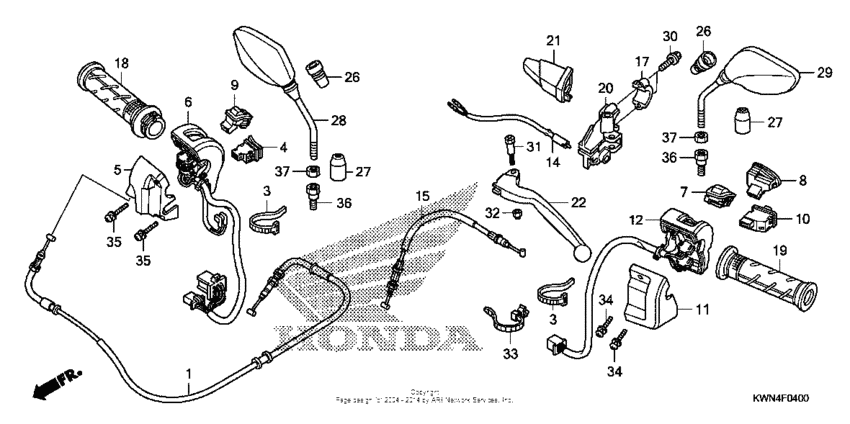

Handle lever + switch + cable

Honda PCX125

Handle lever + switch + cable

Handle lever + switch + cable

1

3

3

4

4

5

6

7

8

8

9

10

10

11

12

14

15

17

18

19

20

21

22

26

26

27

27

28

29

30

31

32

33

34

34

35

35

36

36

37

37

#

oem код

название

цена

1

Cable comp,throt

Cable comp,throt

3

Хомут

Хомут

4

Sw unit,start

Sw unit,start

Use up to Frame SN B5000903

4

Switch unit, starter

Switch unit, starter

Use from Frame SN B5000904

5

Housing rr,start

Housing rr,start

6

Housing comp,star

Housing comp,star

7

Sw unit dimmer

Sw unit dimmer

8

Sw unit,horn

Sw unit,horn

Use up to Frame SN B5000903

8

Switch unit, horn

Switch unit, horn

Use from Frame SN B5000904

9

Sw unit,eng stop

Sw unit,eng stop

10

Sw unit,winker

Sw unit,winker

Use up to Frame SN B5000903

10

Switch unit

Switch unit

Use from Frame SN B5000904

11

Housing rr,winker

Housing rr,winker

12

Housing comp,wink

Housing comp,wink

14

Sw assy,rr stop

Sw assy,rr stop

15

Cable comp,1st rr

Cable comp,1st rr

17

Держатель

Держатель

18

Grip comp,throt (

Grip comp,throt (

19

Grip,l handle (co

Grip,l handle (co

20

Brkt,l hndl lever

Brkt,l hndl lever

21

Boot,l lever

Boot,l lever

22

Lever,l strg hand

Lever,l strg hand

26

Boot,mirror

Boot,mirror

27

Cap,lock nut

Cap,lock nut

28

Mirror comp,r (co

Mirror comp,r (co

29

Mirror comp,l (co

Mirror comp,l (co

30

Bolt,flange socke

Bolt,flange socke

31

Bolt,hndl lever p

Bolt,hndl lever p

32

Nut, hex., 5mm

Nut, hex., 5mm

33

Ременная лента кабель

Ременная лента кабель

CABLE, 118MM(BLACK)

34

Винт с шайбой (5x20)

Винт с шайбой (5x20)

35

Винт (5x25)

Винт (5x25)

36

Bolt,adpt 10mm

Bolt,adpt 10mm

37

Nut,hex 10mm

Nut,hex 10mm
