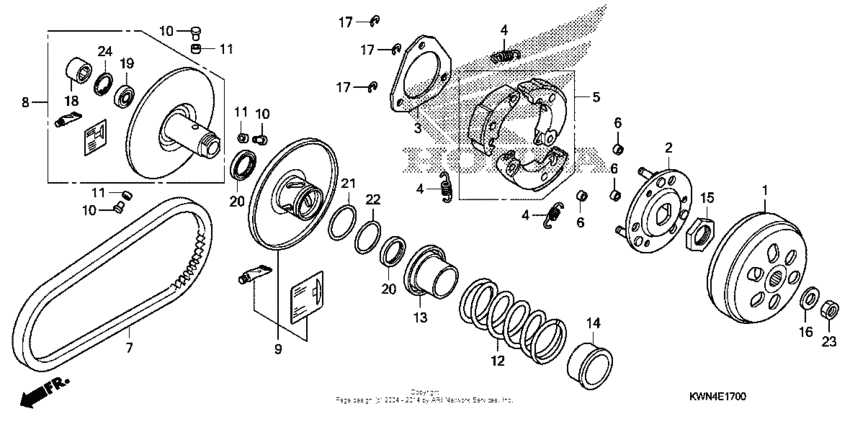

Вариатор

Honda PCX125

Honda
Вариатор
#oem кодцена
1
22100-KWN-900
Outer comp,clutch
2
22350-KVB-900
Plate comp,drive
3
22361-KVB-900
Plate,clutch side
4
22401-KWN-640
Spring,clutch
5
22535-KWN-900
Weight set,clutch
6
22804-GB2-000
Опора
7
23100-KWN-901
Belt,drive
8
23205-KWN-640
Face set,driven
9
23224-KWN-640
Face set,movable
10
23225-KSY-900
Pin, roller guide
11
23226-KVB-900
Roller,guide
12
23233-KWN-901
SPRING, DRIVEN FACE
замена
23233-KWN-900
Spg,lh driven fac
13
23237-KWN-900
Collar,seal
14
23238-KWN-900
Collar,spg
15
90202-KN7-670
Nut,special 30mm
16
90441-GY6-940
Washer,12.2x29x2.
17
90605-166-720
Circlip, 7mm
18
91109-KVY-901
Bearing (20x29x18)
18
91001-KCW-003
Brg,needle 20x29x
19
91009-KVY-961
Bearing (6902u)
19
91002-GA7-701
Bearing (6902u)
20
91211-KN7-671
Seal,driven face,
21
91351-GR1-000
O-ring,38.5x2
22
91351-642-000
Прокладка
23
9403012200
Nut, hex., 12mm
24
94520-28000
Пружинное стопорное кольцо
