Headlight + carrier для мотоциклов Honda P50 (0)

Москва и регионы России

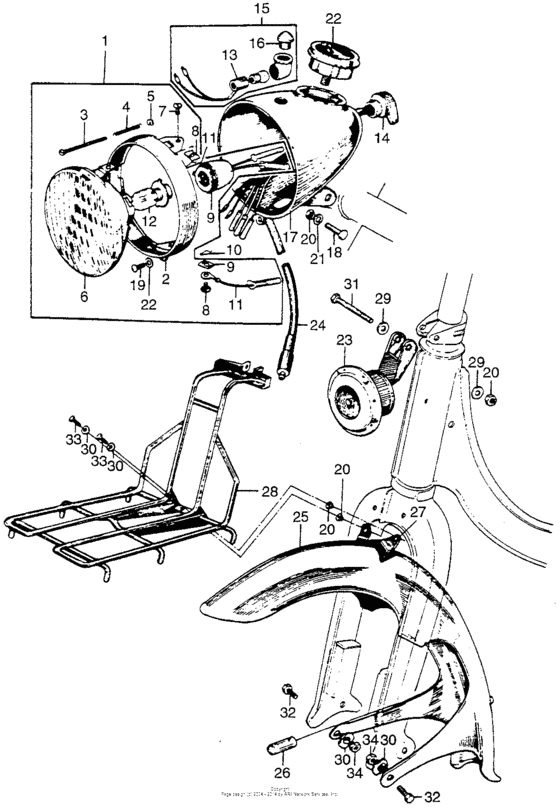

Headlight + carrier

Honda P50

Headlight + carrier

Headlight + carrier

1

2

3

4

5

6

7

8

8

9

9

10

11

11

12

13

14

15

16

17

18

19

20

20

20

20

21

22

22

22

22

23

24

25

26

27

28

29

29

30

30

30

30

31

32

32

32

32

33

33

34

34

#

oem код

название

цена

1

Head light assy

Head light assy

2

Обод фары

Обод фары

3

Screw,head light

Screw,head light

4

Пружина

Пружина

5

Гайка

Гайка

6

Unit,head light

Unit,head light

7

Screw,unit holder

Screw,unit holder

8

Nut, unit holder

Nut, unit holder

9

Socket,head light

Socket,head light

10

Pin, lock (5mm)

Pin, lock (5mm)

11

Sub-wire

Sub-wire

12

Лампа

Лампа

13

Bulb,speedometer

Bulb,speedometer

14

Switch,lighting

Switch,lighting

15

Lamp,beam pilot

Lamp,beam pilot

16

Lens,beam pilot

Lens,beam pilot

17

61301-063-670XL

Case,head.light

Case,head.light

18

Болт

Болт

19

93500-050-080-A

Болт

Болт

PAN, 5X8

20

94001-062-000-S

Гайка

Гайка

HEX., 6MM

21

Шайба

Шайба

PLAIN, 5MM

22

Шайба

Шайба

SPRING, 6MM

22

Speedometer mph

Speedometer mph

23

Звуковой сигнал

Звуковой сигнал

24

Кабель

Кабель

25

61100-081-680XL

Fender,front

Fender,front

Use up to Frame SN A168238

26

Protector,wire

Protector,wire

Use up to Frame SN A168238

27

Metal, fender

Metal, fender

Use from Frame SN A168239

28

81200-044-010XL

Carrier,front

Carrier,front

29

Washer b, handle holder setting

Washer b, handle holder setting

30

Washer, fr

Washer, fr

Use from Frame SN A168239

31

Bolt, hex., 6x40

Bolt, hex., 6x40

32

Болт

Болт

Use from Frame SN A168239

32

Bolt,hex 8x43

Bolt,hex 8x43

Use up to Frame SN A168238

33

Screw, pan, 6x14

Screw, pan, 6x14

34

Гайка

Гайка

HEX., 8MM
