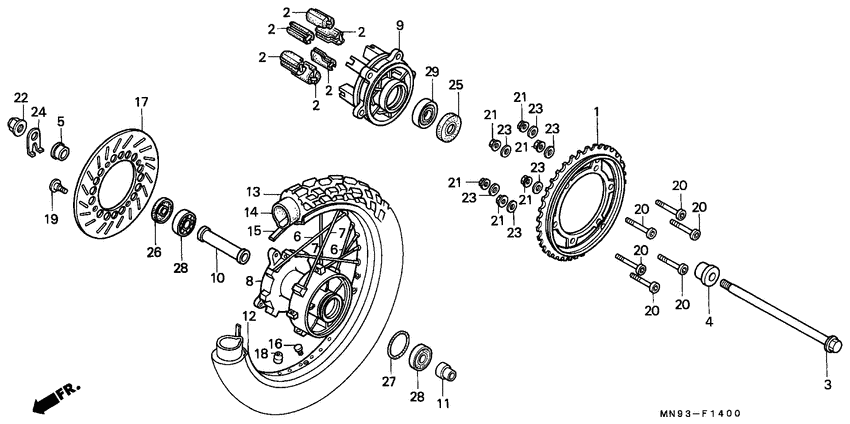

Rear wheel complete assy

Honda NX650 Dominator

Honda
Rear wheel complete assy
#oem кодцена
1
41200-MN9-505
Sprocket comp. (45t)
замена
41200-MN9-000
Sprocket comp.,fi
2
41241-MC4-010
Rubber,rr.wheel d
3
42301-MN9-000
Axle,rear wheel
4
42311-KE7-010
Collar,rr.wheel s
5
42311-KS5-000
Collar,rr.wheel (
6
42610-MN9-405
Spoke set a (a9x212)
замена
426A0-MN9-000
Spoke.set.rr
7
42611-MN9-405
Spoke set b (a9x210)
замена
426B0-MN9-000
Spoke.set.rr
8
42601-MN9-000
Hub rear wheel
9
42611-MS8-000
Flange,final driv
9
42611-MM9-000
Flange,final driv
10
42620-MN9-010
Collar a,rr axle
10
42620-MN9-000
Collar a,rr axle
11
42625-MAN-620
Collar b,rr axle
замена
42625-MC4-000
Collar b, rr.
12
42701-MN9-003
Rim,rear wheel
замена
42711-MN9-023
Tire rear(bs)
13
42711-MN9-005
Tire,rr.
13
42711-MN9-013
Tire rear(bs)
замена
42711-MN9-003
Tire,rr.
14
42712-MN9-003
Tube, tire (120/90-17) (bs)
14
42712-MA0-005
Tube, tire (5.10-17)
замена
42712-KB7-902
Tube (120/90-17)
замена
42713-425-772
Flap,tire
15
42713-MG7-003
Flap,tire
16
42717-329-000
Крышка
17
43351-MN9-010
Disk rear brake
17
43351-MN9-000
Disk rear brake
18
44606-283-000
Балансир
19
90105-KS6-700
Болт (6x17)
20
90128-MM9-000
Bolt,sprocket fix
21
90304-GA6-003
Nut, axle, 10mm
22
90305-ME5-003
Nut, flange, 16mm
23
90465-MM9-000
Washer, 10mm
24
90559-MM9-000
Washer,rr.axle
замена
91252-MC4-005
Oil seal (28x47x2x7)
25
91252-MC4-013
Сальник (28x47.2x7)
замена
91252-MC4-003
Сальник (28x47.2x7)
26
91216-729-921
Oil seal (25x40x7)
замена
91252-428-000
Oil seal (25x40x7)
27
91307-MB0-003
Прокладка
замена
91302-317-700
Прокладка
28
96140-6203010
Подпишиник
29
96140-620-401-0
Подшипник (6204u)
