Rear wheel complete assy для мотоциклов Honda NX650 Dominator (1999)

Москва и регионы России

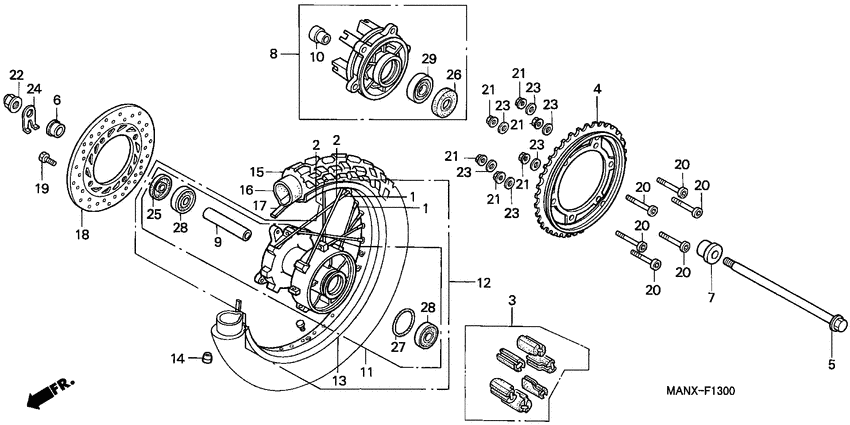

Rear wheel complete assy

Honda NX650 Dominator

Rear wheel complete assy

Rear wheel complete assy

1

1

2

2

3

4

4

5

6

7

8

9

10

11

12

13

14

14

15

15

15

16

16

17

17

18

19

20

20

20

20

20

20

21

21

21

21

21

21

22

23

23

23

23

23

23

24

25

26

27

28

28

29

#

oem код

название

цена

1

Spoke set a

Spoke set a

RR. (A9X212)

2

Spoke set b

Spoke set b

RR. (A9X210)

3

Набор втулок

Набор втулок

WHEEL

4

Sprocket final drive

Sprocket final drive

4

Sprocket final drive

Sprocket final drive

5

Axle,rear wheel

Axle,rear wheel

6

Collar a,rr wheel

Collar a,rr wheel

7

Collar b,rr wheel

Collar b,rr wheel

8

Flange sub assy,r

Flange sub assy,r

9

Collar a,rr axle

Collar a,rr axle

10

Collar b,rr axle

Collar b,rr axle

11

Hub sub assy,rr

Hub sub assy,rr

12

Sub assy,rr wheel

Sub assy,rr wheel

13

Rim,rr wheel

Rim,rr wheel

14

Weight,balance 20

Weight,balance 20

14

Weight,balance 10

Weight,balance 10

15

Tire,rr

Tire,rr

15

Tire,rr(dun)

Tire,rr(dun)

15

Tire,rr

Tire,rr

- *8

16

Tube,tire

Tube,tire

16

Tube,tire(dun)

Tube,tire(dun)

17

Flap,tire

Flap,tire

17

Flap,tire(dun)

Flap,tire(dun)

18

Disk,rr brake

Disk,rr brake

19

Болт (6x17)

Болт (6x17)

20

Bolt,sprocket fix

Bolt,sprocket fix

21

Nut, axle, 10mm

Nut, axle, 10mm

22

Nut,spl u 16mm

Nut,spl u 16mm

23

Washer, 10mm

Washer, 10mm

24

Washer,rr.axle

Washer,rr.axle

25

Oil seal (25x40x7)

Oil seal (25x40x7)

26

Сальник (28x47.2x7)

Сальник (28x47.2x7)

27

Прокладка

Прокладка

замена

Прокладка

Прокладка

54X2

28

96150-620-301-0

Bearing, radial ball, 6203uu

Bearing, radial ball, 6203uu

29

Bearing, radial ball, 6204uu

Bearing, radial ball, 6204uu
