Tank fuel для мотоциклов Honda NX250 (1988)

Москва и регионы России

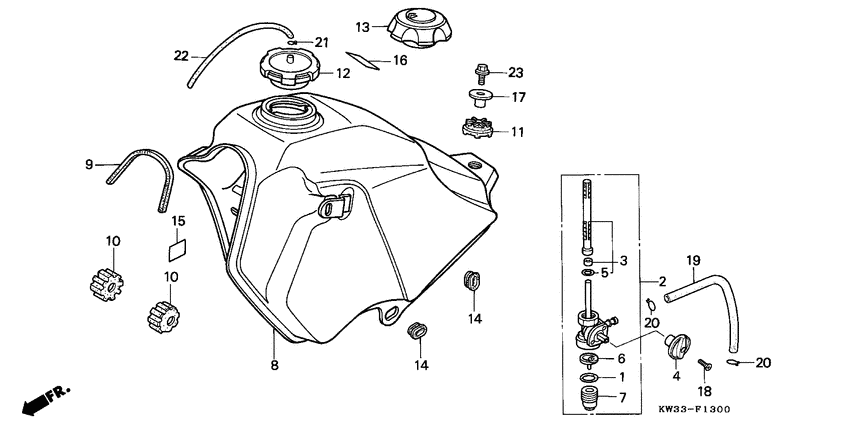

Tank fuel

Honda NX250

Tank fuel

Tank fuel

1

2

3

4

5

6

7

8

8

8

8

8

10

10

11

13

13

14

14

15

16

16

17

18

19

20

20

23

#

oem код

название

цена

1

Packing, fuel strainer cup

Packing, fuel strainer cup

2

Cock assy.,fuel

Cock assy.,fuel

3

Трубка

Трубка

замена

Трубка

Трубка

4

Lever,fuel cock

Lever,fuel cock

5

O-ring,1.3x10.6

O-ring,1.3x10.6

замена

Прокладка

Прокладка

6

Фильтр

Фильтр

7

Крышка

Крышка

8

17510-KW3-010ZD

Tank comp.,*g120*

Tank comp.,*g120*

5002402 -

8

17510-KW3-010ZC

Tank comp.,*r134*

Tank comp.,*r134*

5002402 -

8

17510-KW3-000ZD

Tank comp.,*g120*

Tank comp.,*g120*

- 5002401

8

17510-KW3-000ZC

Tank comp.,*r134*

Tank comp.,*r134*

- 5002401

8

17510-KW3-010ZA

Tank, fuel *pb171mu*

Tank, fuel *pb171mu*

замена

17510-KW3-000ZA

Tank com*pb171mu*

Tank com*pb171mu*

- 5002401

10

Rubber, fr. tank

Rubber, fr. tank

11

Cushion,fuel tank

Cushion,fuel tank

замена

Срышка топливной горловины

Срышка топливной горловины

5002715 -

13

Fuel fill cap

Fuel fill cap

замена

Cap comp.,fuel fi

Cap comp.,fuel fi

5000979 - 5002714

13

Cap comp.,fuel fi

Cap comp.,fuel fi

- 5000978

14

Grommet, air cleaner case

Grommet, air cleaner case

15

Label reserv tank

Label reserv tank

16

87560-MB2-620ZC

Mark,drive**nh-0*

Mark,drive**nh-0*

16

87560-MB2-620ZB

Mark,drive**nh-1*

Mark,drive**nh-1*

17

Washer, tank setting

Washer, tank setting

18

93700-050-250-G

Screw,oval,5x25

Screw,oval,5x25

19

95001-551-204-0

Tube, fuel, 5.3x120 (95001-55001-60m)

Tube, fuel, 5.3x120 (95001-55001-60m)

20

Зажим

Зажим

TUBE(B10)

23

96300-060-120-0

Болт

Болт

замена

Болт

Болт
