Рама для мотоциклов Honda NX125 (1988)

Москва и регионы России

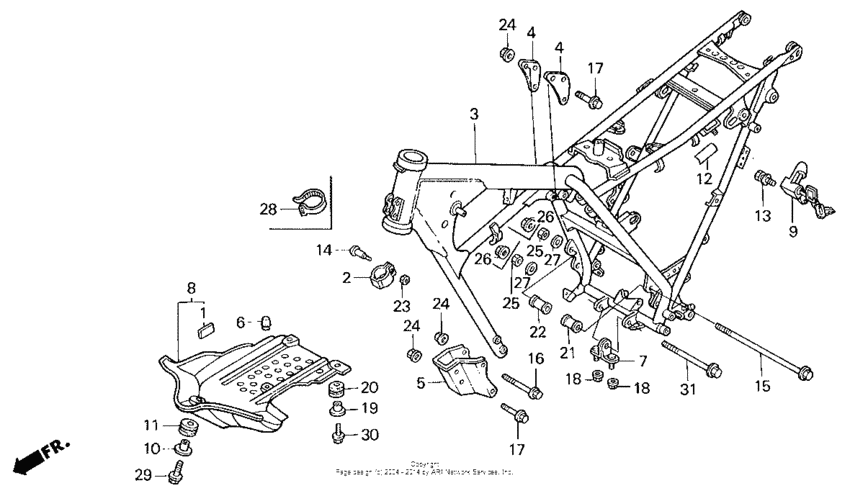

Рама

Honda NX125

Рама

Рама

1

3

4

4

5

6

8

9

10

11

12

13

15

15

16

17

17

19

20

21

22

24

24

24

26

26

28

29

30

30

31

#

oem код

название

цена

1

Rubber, tank

Rubber, tank

3

06500-KY7-307ZA

Frame set *nh146m*

Frame set *nh146m*

4

50138-KY7-000ZA

Plate *nh146m*

Plate *nh146m*

5

50351-KY7-000ZA

Plate, fr. *nh146m*

Plate, fr. *nh146m*

6

Rubber a, stopper

Rubber a, stopper

8

50355-KY7-000ZB

Plate, skid *nh196*

Plate, skid *nh196*

9

Holder assy., helmet

Holder assy., helmet

10

Collar (8x15)

Collar (8x15)

11

Rubber,mounting

Rubber,mounting

12

87565-KY7-000ZA

Label, color (type1)

Label, color (type1)

13

Болт

Болт

15

Bolt,hex 10x215

Bolt,hex 10x215

Use from Frame SN JK000229

15

Bolt,flange10x222

Bolt,flange10x222

Use up to Frame SN JK000228

16

Bolt,flange,8x85

Bolt,flange,8x85

17

Болт

Болт

19

Collar a,air/c

Collar a,air/c

20

Втулка

Втулка

21

90742-437-970ZF

Collar, l. *nh35m*

Collar, l. *nh35m*

22

90743-437-970ZG

Collar, r. *nh35m*

Collar, r. *nh35m*

24

Гайка

Гайка

FLANGE, 8MM

26

Гайка

Гайка

FLANGE, 10MM

28

Band a2, wire

Band a2, wire

29

Bolt, flange, 8x28

Bolt, flange, 8x28

30

95701-060-200-0

Болт

Болт

Use up to Frame SN JK000228

30

93404-060-200-8

Bolt-washer

Bolt-washer

6X20 Use from Frame SN JK000229

31

95801-101-100-0

Bolt, flange, 10x110

Bolt, flange, 10x110
