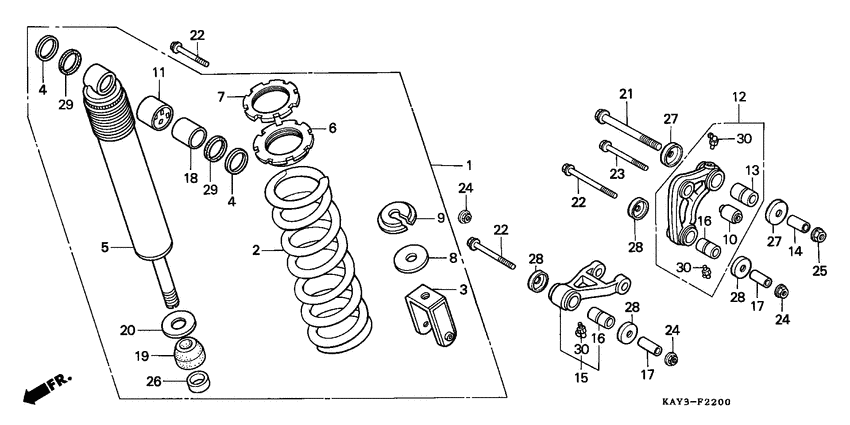

Rear cushion

Honda NX125

Honda
Rear cushion
#oem кодцена
1
52400-KAY-601ZA
Cushion ass*b106*
2
52401-KAY-601ZA
Spring,rr.c*b106*
3
52403-KAY-601
Соединитель
4
52406-KS3-900
Cap,dust seal
5
52410-KAY-601
Damper comp.,rr.
6
52422-MA0-003
Регулировщик
7
52423-MA0-003
Nut,adjuster
8
52427-KAY-601
Washer,spring sto
9
52428-KAY-601
Stopper,spring lo
10
52451-MA0-000
Bush, shock (lower)
11
52452-KS3-900
Bush,damper upper
12
52460-KS3-900
Arm assy.,cushion
13
52462-MA0-013
Bush, damper arm
14
52463-MA0-010
Манжета
15
52470-KE1-900
Rod,cush.conn.
16
52472-MA0-013
Втулка
17
52473-MA0-020
Манжета
18
52486-KS3-900
Collar,damper upp
19
52517-GF9-621
Rubber,stopper
20
52518-KR1-761
Washer,rr.cushion
21
90128-MA0-003
Bolt,flg.,12x78
22
90129-MA0-003
Bolt,flange,10x69
23
90153-MC4-003
Болт
24
90304-GE8-003
Nut, u, 10mm
25
90306-KF0-003
Nut, flange, 12mm
26
90307-GF9-621
Nut stopper
27
91261-KJ1-702
Seal,cush,arm
27
91261-KJ1-701
Seal,cush,arm
28
91262-MA0-015
Seal, rr.
замена
91262-MA0-013
Seal,cush.conn.
29
91351-KS3-900
Seal b,dust
30
9620180000
Fitting (b.76s)
