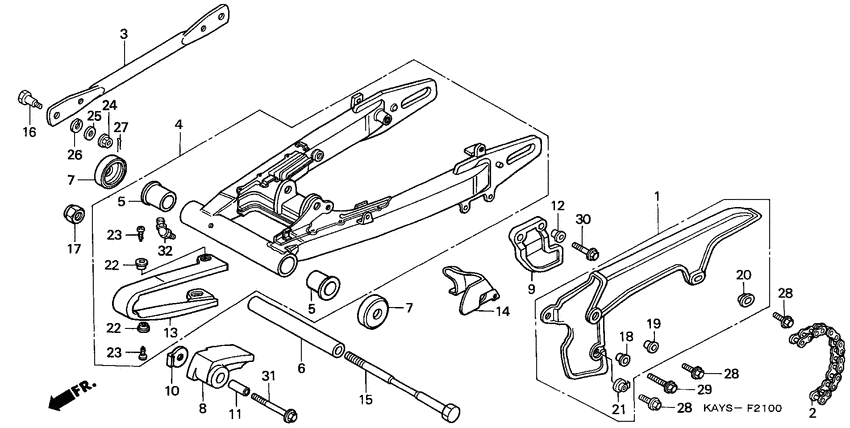

Swingarm/chain case

Honda NX125

Honda
Swingarm/chain case
#oem кодцена
1
40510-KAY-600
Case,drive chain
2
40530-KAY-601
Chain,drive (regi
3
43431-KAY-600
Arm,rr.brake stop
4
52100-KAY-600ZA
Fork assy.*nh35m*
5
52108-KE5-003
Bush, swingarm
замена
52108-KB9-003
Bush,fork.pivot
6
52141-KG1-920
Collar,rr.fork
7
52144-356-005
Cap, dust seal
замена
52144-356-003
Cap, dust seal
8
52155-KG1-920
Slipper,chain
9
52156-KB9-000
Guard,drive chain
10
52157-MC4-000
Nut,chain slipper
11
52158-MC4-000
Collar,chain slip
12
52159-KB7-000
Collar, chain guard
13
52170-KG1-920
Slider,chain
14
80108-KA2-000
Струбцина
15
90121-KG1-920
Bolt,rr.fork pvt.
16
90133-KAY-600
Bolt,rr.brake sto
17
90305-GE8-003
Гайка (14mm)
18
90501-124-000
Washer, fr
19
90512-300-000
Шайба
20
90513-323-000
Шайба
21
90514-KG1-920
Collar,chain
22
90556-044-000
Washer, fr
23
93901-26110
Болт
24
94001-080-000-S
Гайка
25
94101-08000
Шайба
26
94111-10000
Шайба
27
94201-20150
Штифт
28
95701-060-100-0
Болт
29
95701-0601800
Bolt, flange, 6x18
30
95701-0602200
Bolt, flange, 6x22
31
95701-080-450-0
Болт
32
9620160000
Fitting (c.76)
