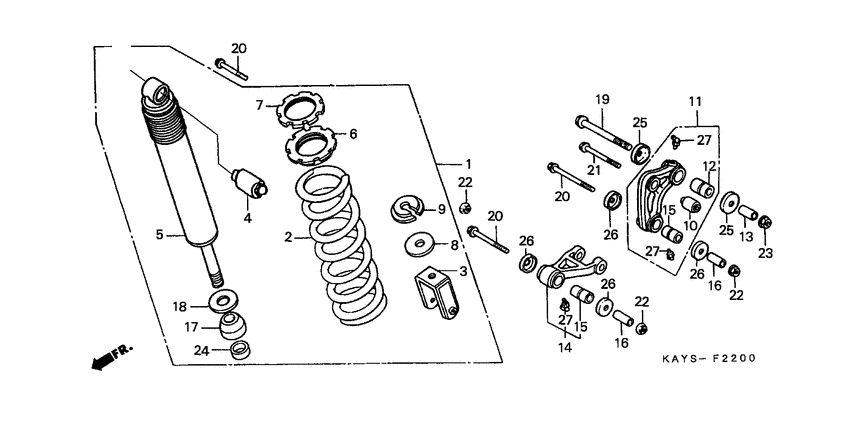

Rear cushion

Honda NX125

Honda
Rear cushion
#oem кодцена
1
52400-KAY-601ZA
Cushion ass*b106*
2
52401-KAY-601ZA
Spring,rr.c*b106*
3
52403-KAY-601
Соединитель
4
52451-MA0-000
Bush, shock (lower)
5
52410-KAY-601
Damper comp.,rr.
6
52422-MA0-003
Регулировщик
7
52423-MA0-003
Nut,adjuster
8
52427-KAY-601
Washer,spring sto
9
52428-KAY-601
Stopper,spring lo
10
52451-MA0-000
Bush, shock (lower)
11
52460-KS3-900
Arm assy.,cushion
12
52462-MA0-013
Bush, damper arm
13
52463-MA0-010
Манжета
14
52470-KE1-900
Rod,cush.conn.
15
52472-MA0-013
Втулка
16
52473-MA0-020
Манжета
17
52517-GF9-621
Rubber,stopper
18
52518-KR1-761
Washer,rr.cushion
19
90128-MA0-003
Bolt,flg.,12x78
20
90129-MA0-003
Bolt,flange,10x69
21
90153-MC4-003
Болт
22
90304-GE8-003
Nut, u, 10mm
23
90306-KF0-003
Nut, flange, 12mm
24
90307-GF9-621
Nut stopper
25
91261-KJ1-701
Seal,cush,arm
26
91262-MA0-015
Seal, rr.
замена
91262-MA0-013
Seal,cush.conn.
27
9620180000
Fitting (b.76s)
