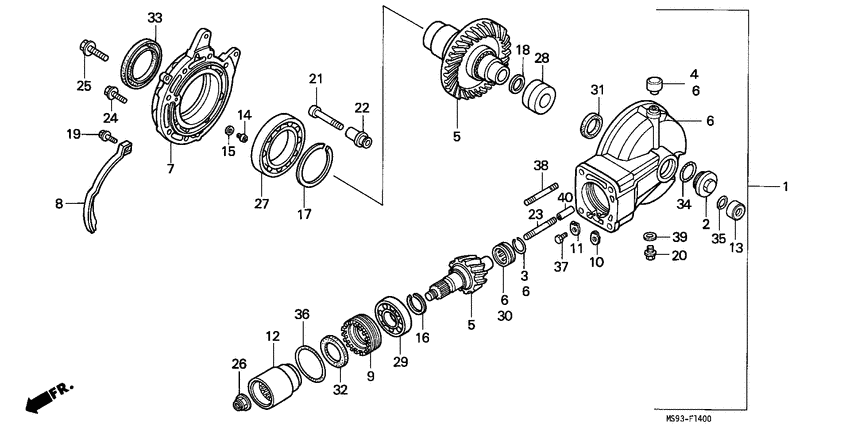

Редуктор

Honda NTV650 Revere

Honda
Редуктор
#oem кодцена
1
41300-MS9-000
Привод
2
41302-MS9-000
Cap,gear case oil
3
41305-MB4-770
Кольцо
4
41306-MB0-020
Cap, breather
замена
41306-MB0-010
Cap, breather
5
41310-MS9-305
Gear set,final
6
41311-MS9-305
Case set,final
7
41321-MS9-000
Крышка редуктора
8
41324-MS9-000
Plate,dust guard
9
41331-ME9-010
Обойма подшипника
10
41332-415-000
Lock a, bearing adj.
11
41333-415-000
Lock b, bearing adj.
12
41410-ME9-770
Joint, pinion
13
41435-MS9-300
Collar,ring gear
14
41436-MS9-300
Pin,ring gear sto
15
41438-MS9-300
Shim b,stopper pi
15
41437-MS9-300
Shim a,stopper pi
16
41456-MG8-000
Shim g (2.18)
16
41455-MG8-000
Shim f (2.12)
16
41454-MG8-000
Shim e (2.06)
16
41453-MG8-000
Shim d (2.00)
16
41452-MG8-000
Shim c (1.94)
16
41451-MG8-000
Shim b (1.88)
16
41450-MG8-000
Shim a (1.82)
17
41471-MS9-000
Shim v,ring gear
17
41470-MS9-000
Shim u,ring gear
17
41469-MS9-000
Shim t,ring gear
17
41468-MS9-000
Shim s,ring gear
17
41467-MS9-000
Shim r,ring gear
17
41466-MS9-000
Shim q,ring gear
17
41465-MS9-000
Shim p,ring gear
17
41464-MS9-000
Shim o,ring gear
17
41463-MS9-000
Shim n,ring gear
17
41462-MS9-000
Shim m,ring gear
17
41461-MS9-000
Shim l,ring gear
17
41460-MS9-000
Shim k,ring gear
17
41459-MS9-000
Shim j,ring gear
17
41458-MS9-000
Shim i,ring gear
17
41457-MS9-000
Shim h,ring gear
17
41456-MS9-000
Shim g,ring gear
17
41455-MS9-000
Shim f,ring gear
17
41454-MS9-000
Shim e,ring gear
17
41453-MS9-000
Shim d,ring gear
17
41452-MS9-000
Shim c,ring gear
17
41451-MS9-000
Shim b,ring gear
17
41450-MS9-000
Shim a,ring gear
18
41524-MS9-000
Shim o,shaft (2.6
18
41523-MS9-000
Shim n,shaft (2.5
18
41522-MS9-000
Shim m,shaft (2.4
18
41521-MS9-000
Shim l,shaft (2.4
18
41520-MS9-000
Shim k,shaft (2.3
18
41519-MS9-000
Shim j,shaft (2.3
18
41518-MS9-000
Shim i,shaft (2.2
18
41517-MS9-000
Shim h,shaft (2.1
18
41516-MS9-000
Shim g,shaft (2.1
18
41515-MS9-000
Shim f,shaft (2.0
18
41514-MS9-000
Shim e,shaft (2.0
18
41513-MS9-000
Shim d,shaft (1.9
18
41512-MS9-000
Shim c,shaft (1.8
18
41511-MS9-000
Shim b,shaft (1.8
18
41510-MS9-000
Shim a,shaft (1.7
19
90013-883-000
Bolt, flange, 6x12 (ct200)
20
90081-MC7-000
Bolt, plug, 14mm
21
90113-MS9-000
Bolt,drive pin
22
90114-MS9-000
Pin,drive
23
90125-MS9-000
Bolt,stud,10x42
24
90133-MB0-000
Болт
25
90134-HA0-000
Болт
26
90381-MB0-010
Nut, hex. (16mm)
27
91051-MS9-003
Bearing,radial ba
28
91052-MS9-003
Bearing,radial ba
29
91061-MB0-005
Подшипник (6305)
30
91062-MG8-005
Bearing (19/18)
замена
91062-MB4-773
Bearing (19/18)
31
91261-MS9-005
Oil seal,38x50x8
32
91262-MS9-005
Oil seal,39x51x7
33
91265-MS9-005
Oil seal,85x110x7
34
91302-001-020
O-ring, 30.8mm
35
91356-MS9-000
O-ring,30x1.9
36
91359-MB0-000
O-ring, 58.5x3.5
37
9210106012
Болт
замена
92000-06012
Болт
38
92900-10032-0E
Болт заклепка
39
94109-14000
Шайба
40
94304-12200
Палец
