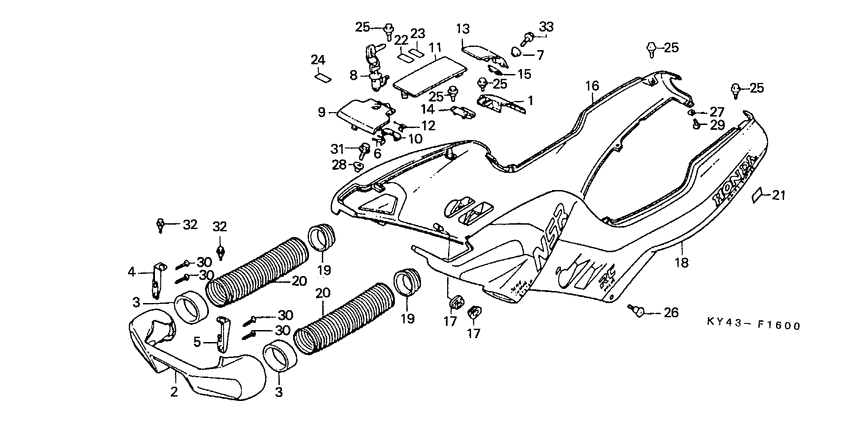

Боковая крышка для мотоциклов Honda NSR125R (1988)

Москва и регионы России

Боковая крышка

Honda NSR125R

Боковая крышка

Боковая крышка

1

6

7

8

9

10

11

11

12

13

13

14

15

16

16

17

17

18

18

21

22

23

25

25

25

25

25

26

27

28

29

31

33

#

oem код

название

цена

1

Plate,air intake

Plate,air intake

6

Пружина

Пружина

LOCK KEY SETTING

7

Collar c6.3, setting

Collar c6.3, setting

8

Lock assy.,upper

Lock assy.,upper

9

83300-KY4-900ZA

Cover a,uppe*nh1*

Cover a,uppe*nh1*

10

Plate a,side cove

Plate a,side cove

11

83400-KY4-901ZB

Cover comp.*g124*

Cover comp.*g124*

11

83400-KY4-901ZA

Cover comp*pb137*

Cover comp*pb137*

12

Plate,upper lid s

Plate,upper lid s

13

83460-KY4-900ZB

Cover c,upp*g124*

Cover c,upp*g124*

13

83460-KY4-900ZA

Cover c,up*pb137*

Cover c,up*pb137*

14

Plate,side cover

Plate,side cover

15

Plate c,side cove

Plate c,side cove

16

83510-KY4-900ZB

Sub assy.,*type2*

Sub assy.,*type2*

16

83510-KY4-900ZA

Sub assy.,*type1*

Sub assy.,*type1*

17

Grommet, air cleaner case

Grommet, air cleaner case

18

83610-KY4-900ZB

Sub assy.,*type2*

Sub assy.,*type2*

18

83610-KY4-900ZA

Sub assy.,*type1*

Sub assy.,*type1*

21

Label,helmet hold

Label,helmet hold

22

87512-KY4-902ZB

Mark,acce*typeb.*

Mark,acce*typeb.*

23

87560-383-900ZB

Mark,drive *nh-0*

Mark,drive *nh-0*

25

Болт

Болт

FLANGE, 6MM

26

Screw,special,6mm

Screw,special,6mm

27

Nut, spring, 5mm

Nut, spring, 5mm

28

Washer, rr. cover

Washer, rr. cover

29

Screw, pan (5x11.5)

Screw, pan (5x11.5)

31

95701-060-100-7

Болт

Болт

FLANGE, 6X10

33

95701-060-220-7

Болт

Болт

FLANGE, 6X22
