Rear cushion для мотоциклов Honda NSR125R (2001)

Москва и регионы России

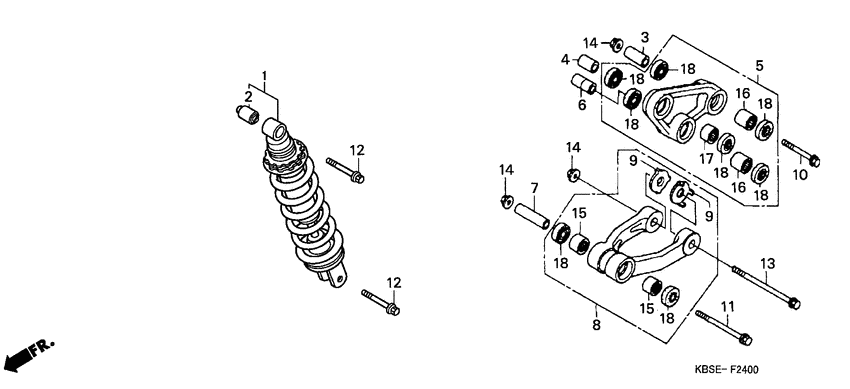

Rear cushion

Honda NSR125R

Rear cushion

Rear cushion

1

2

3

4

5

6

7

8

9

9

10

11

12

12

13

14

14

14

15

15

16

16

17

18

18

18

18

18

18

18

18

#

oem код

название

цена

1

Cushion assy,rear

Cushion assy,rear

2

Bush, shock (lower)

Bush, shock (lower)

3

Collar,cush.arm

Collar,cush.arm

4

Collar,cushion lo

Collar,cushion lo

5

Arm sub assy,cush

Arm sub assy,cush

6

Collar,cush.arm c

Collar,cush.arm c

7

Collar,cushion ar

Collar,cushion ar

8

Conn rod set,cush

Conn rod set,cush

9

Шайба упорная

Шайба упорная

10

Болт

Болт

11

Болт

Болт

12

Bolt, flange, 10x43

Bolt, flange, 10x43

13

Bolt, flg (10x113)

Bolt, flg (10x113)

14

Nut, u, 10mm

Nut, u, 10mm

15

Bearing,needle

Bearing,needle

16

Brg.needle 15x21x

Brg.needle 15x21x

17

Bearing,needle

Bearing,needle

18

Dust seal, connecting rod pivot

Dust seal, connecting rod pivot
