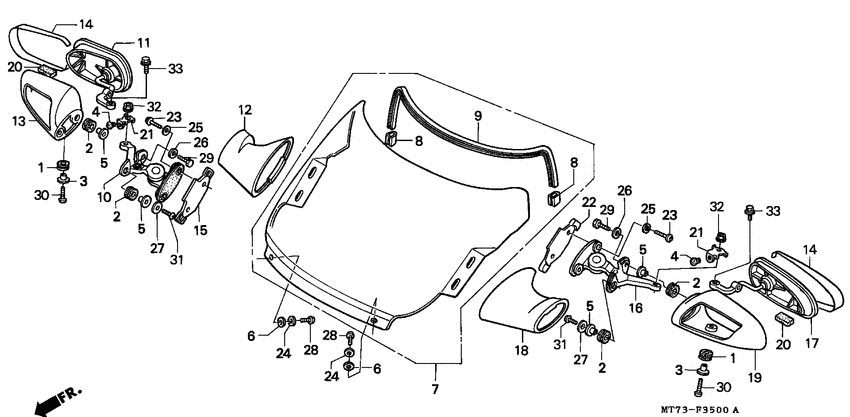

Wind screen/back mirror

Honda NR750

Honda
Wind screen/back mirror
#oem кодцена
1
11344-MB0-000
Grommet a, rr. cover (8x16x6.6)
2
18293-GN2-000
Rubber, protector packing
3
33712-GC6-000
Втулка
4
40514-333-000
Plug, chain guard
5
61304-292-000
Манжета
6
63174-ZB9-003
Packing,pin
7
64100-MT7-000
Screen assy.,wind
8
64102-MA3-720
Clip, screen molding
9
64105-MT7-000
Moul,wind screen
10
88111-MT7-003
Stay comp,r
11
88112-MT7-003
Зеркало правое
12
88113-MT7-000
Boots,r back mirr
13
88115-MT7-003ZA
Cover,r.mir*r175*
14
88116-MT7-000
Stripe,mirror
15
88119-MT7-000
Plate r,back mirr
16
88121-MT7-003
Stay comp,l
17
88122-MT7-003
Зеркало левое
18
88123-MT7-000
Boots,l back mirr
19
88125-MT7-003ZA
Cover,l.mir*r175*
20
88125-MT7-300
Rubber, housing
21
88126-MT7-000
Опора
22
88129-MT7-000
Plate l,back mirr
23
90106-MS2-000
Болт (6x25)
24
90408-155-000
Washer,4.2mm
25
90434-SA0-000
Washer, plain, 6mm
26
90483-041-000
Шайба
замена
90483-040-000
Washer, stopper, 14mm
27
90483-178-000
Washer, stopper, 14mm
28
91615-SM3-003
Screw,setting,4x6
29
92101-05022-0A
Bolt, hex., 5x22
30
93500-050250G
Screw, pan, 5x25
31
93903-25380
Болт
32
94050-05080
Гайка
33
96001-060-160-0
Болт
