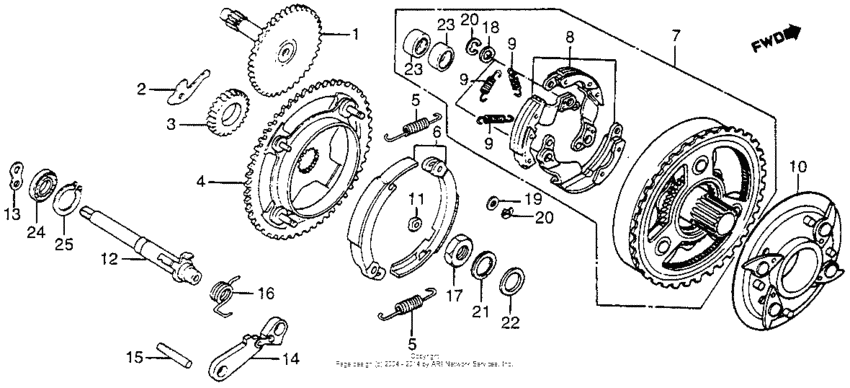

Oil pump driveshaft + clutch + parking shaft

Honda NN50

Honda
Oil pump driveshaft + clutch + parking shaft
#oem кодцена
1
15110-GJ5-003
Вал
2
15116-GJ5-000
Пластина
3
15131-GJ5-000
Шестерня
4
22350-GK0-000
Пластина
5
22401-GK0-000
Spring, low clutch
6
22535-GJ5-P00
Weight set,low cl
7
22600-GK0-406
Clutch assy,2nd
8
22620-GK0-405
Weight set,2nd cl
9
22623-GK0-670
Пружина
10
22650-GK0-000
Plate, sun gear
11
22804-GJ5-010
Rub, clutch damper
12
24510-GJ5-000
Shaft, parking
13
24513-GJ5-000
Lever, parking
14
24520-GJ5-000
Arm assy., parking
15
24531-GJ5-000
Pin, parking
16
24552-GJ5-000
Spring, parking arm
17
90201-GJ5-000
Nut, special (17mm)
18
90442-GB2-000
Washer, thrust, 6mm
19
90442-044-000
Washer, thrust (6mm)
20
90454-GB2-000
Пружинное стопорное кольцо
21
90455-GJ5-003
Стопорное кольцо (12мм)
22
90461-GJ5-000
Washer, thrust, 12mm
23
91024-GJ5-003
Подшипник(12x16x10)
24
91201-VA4-801
Oil seal, 10x20x5
25
94510-12000
Пружинное стопорное кольцо
