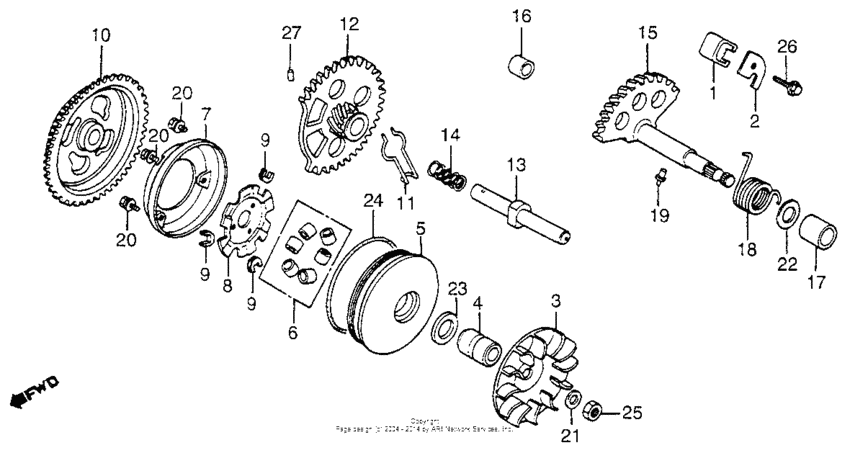

Drive face + kick starter

Honda NH80 Aero

Honda
Drive face + kick starter
#oem кодцена
1
11205-GA7-000
Stopper, kick return
2
11206-GA7-000
Пластина
3
22102-GC8-000
Face,drive
4
22105-GC8-010
Boss, drive face
5
22110-GN3-670
Face comp.,movabl
6
22123-GC8-305
Roller set,weight
7
22126-GC8-000
Seal,movable face
8
22131-GC8-000
Plate,ramp
9
22132-GC8-000
Piece,slide
10
28220-GC8-000
Gear,kick start.
11
28223-GA7-000
Spg,start gear
12
28230-GC8-000
Gear,start.idle
13
28241-KG8-900
Shaft, starter idle
14
28242-GA7-000
Spg,start idle
15
28250-GC8-000
Spdl,kick.starter
16
28254-GA7-004
Bush 12x16x12
16
28254-GA7-003
Bush,12x16x12
17
28254-187-003
Bush b,kick spdl
18
28281-GC8-000
Spg,kick starter
19
28282-GA7-000
Pin,special,4.5mm
20
90005-GAH-600
Bolt-washer (4x10)
замена
90005-187-000
Болт
21
90426-GW0-730
Шайба
22
90451-155-000
Washer, 14mm
22
90428-958-000
Washer b (14mm)
23
91203-GC8-003
Seal,24x31x3.5
24
91305-GC8-003
Прокладка
25
94031-10000
Nut,hex 10mm
26
96001-060-160-0
Болт
27
9622030085
Ролик (3x8.5)
