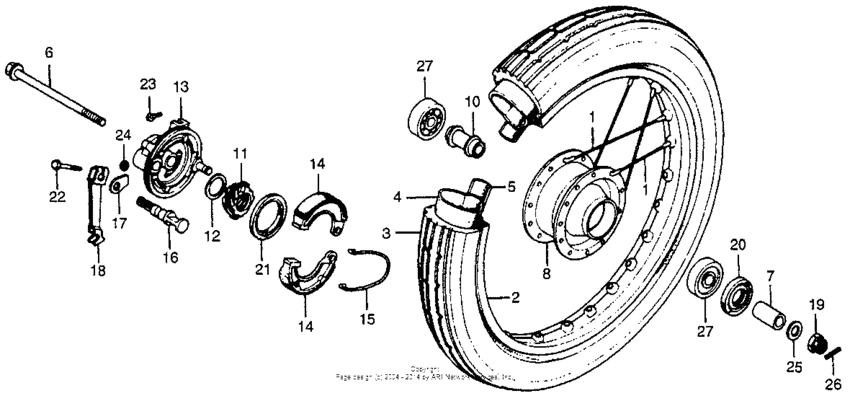

Front wheel + front brake panel

Honda NC50

Honda
Front wheel + front brake panel
#oem кодцена
NI
44700-147-710
Rim set, fr. wheel
NI
06430-131-405
Колодки
1
42607-147-325
Spoke,b,12x143.5
2
42701-147-710
Rim,wheel
3
42711-147-671
Tire
4
44712-131-005
Tube, tire (2.25-14)
5
44713-131-005
Flap, tire (14)
5
42713-116-671
Flap, rr. tube (14)
6
44301-147-000
Axle,front wheel
7
44311-GC6-000
Втулка
8
44601-147-670
Hub,front wheel
10
44620-147-000
Collar, fr. distance
11
44804-147-000
Gear,speedometer
12
44809-044-000
Washer,gear box
13
45050-147-325
Panel comp.fr.brk
14
43120-GZ9-003
Shoe comp., brake (ask)
14
06430-131-405
Колодки
15
45133-044-000
Скоба
16
45141-147-040
Кулак
17
45145-147-000
Указатель
18
45410-161-000
Рычаг передний
19
90305-041-000
Nut,rear axle
20
90754-147-003
Oil seal (19x30.5x7)
20
90754-GK1-003
O/seal 19x30.5x7
21
91252-147-003
Oil seal (34x47x5)
22
92101-05020-0A
Bolt, hex., 5x20
23
93500-040-060-A
Болт
24
94001-050-000-S
Гайка
25
9410210000
Washer, plain, 10mm
26
9420125300
Pin, split, 2.5x30
27
96140-6200010
Bearing (6200u)
