Передняя вилка для мотоциклов Honda NB50 (1985)

Москва и регионы России

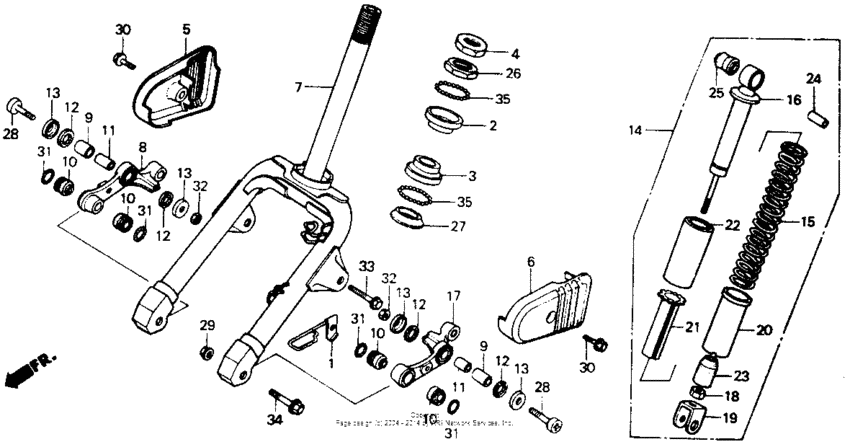

Передняя вилка

Honda NB50

Передняя вилка

Передняя вилка

1

2

3

4

5

6

7

8

9

9

10

10

10

10

11

11

12

12

12

12

13

13

13

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

28

28

30

30

31

31

31

31

32

32

33

34

35

35

#

oem код

название

цена

1

Guide,cable

Guide,cable

2

Race, steering upper ball

Race, steering upper ball

3

Race, steering under ball

Race, steering under ball

4

Гайка

Гайка

5

51103-GN2-000ZA

Cov,pivot*nh-1*

Cov,pivot*nh-1*

6

51104-GN2-000ZA

Cov.pivot*nh-1*

Cov.pivot*nh-1*

7

51105-GN2-600ZB

Fork comp*nh-35m*

Fork comp*nh-35m*

8

Pivot arm,r fr

Pivot arm,r fr

9

Bush, fr. fork

Bush, fr. fork

10

Bush, pivot arm

Bush, pivot arm

11

Collar, fr

Collar, fr

12

Dustseal, cushion

Dustseal, cushion

13

Крышка

Крышка

14

51400-GN2-671ZB

Cushion a*nh-35m*

Cushion a*nh-35m*

15

Spring,fr.cushion

Spring,fr.cushion

16

Damper comp.,fr.

Damper comp.,fr.

17

Pivot arm,l fr

Pivot arm,l fr

18

Гайка блокирующая,8MM

Гайка блокирующая,8MM

19

Joint,fr.cush.bot

Joint,fr.cush.bot

20

51421-GN2-003ZB

Case, fr. *nh35m*

Case, fr. *nh35m*

21

Guide,fr cush spg

Guide,fr cush spg

22

51460-GG2-003ZH

Case, fr. *nh35m*

Case, fr. *nh35m*

23

Rubber,stopper

Rubber,stopper

24

Collar, cushion rubber bush (showa)

Collar, cushion rubber bush (showa)

25

Rubber a, joint

Rubber a, joint

26

Race, steering top cone

Race, steering top cone

27

Race, steering bottom cone (mitsuboshi)

Race, steering bottom cone (mitsuboshi)

28

Bolt,fr.cushion

Bolt,fr.cushion

29

Nut, hex., 8mm

Nut, hex., 8mm

30

Болт

Болт

FLANGE, 5X9

31

Прокладка

Прокладка

16.8X1.9

32

94002-080-000-S

Гайка

Гайка

HEX., 8MM

33

95800-080-350-0

Bolt,frang,8x35

Bolt,frang,8x35

34

Bolt, flange, 8x50

Bolt, flange, 8x50

35

Ball, steel, #5 (5/32)

Ball, steel, #5 (5/32)
