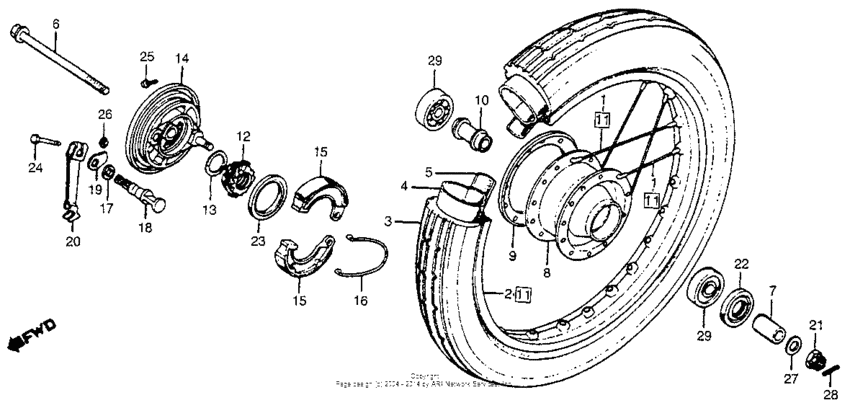

Front wheel + panel

Honda NA50

Honda
Front wheel + panel
#oem кодцена
NI
06430-131-405
Колодки
1
42607-147-325
Spoke,b,12x143.5
2
42701-147-711
Rim,wheel
3
42711-147-671
Tire
4
44712-131-005
Tube, tire (2.25-14)
5
44713-131-005
Flap, tire (14)
5
42713-116-671
Flap, rr. tube (14)
6
44301-147-000
Axle,front wheel
7
44311-GC6-000
Втулка
8
44601-147-670
Hub,front wheel
9
44603-147-650
Cover, fr. hub
10
44620-147-000
Collar, fr. distance
12
44804-147-000
Gear,speedometer
13
44809-044-000
Washer,gear box
14
45010-191-000ZA
Panel sub *nh35m*
15
43120-GZ9-003
Shoe comp., brake (ask)
15
06430-131-405
Колодки
16
45133-044-000
Скоба
17
45134-165-890
Кольцо
18
45141-147-040
Кулак
19
45145-147-000
Указатель
20
45410-187-000
Arm,fr brake
21
90304-GA6-003
Nut, axle, 10mm
21
90305-041-000
Nut,rear axle
22
90754-147-003
Oil seal (19x30.5x7)
22
90754-GK1-003
O/seal 19x30.5x7
23
91252-147-003
Oil seal (34x47x5)
24
92101-05020-0A
Bolt, hex., 5x20
25
93500-040-060-A
Болт
26
94001-050-000-S
Гайка
27
9410210000
Washer, plain, 10mm
28
9420125300
Pin, split, 2.5x30
29
96140-6200010
Bearing (6200u)
