Rear wheel complete assy для мотоциклов Honda MTX200 (1985)

Москва и регионы России

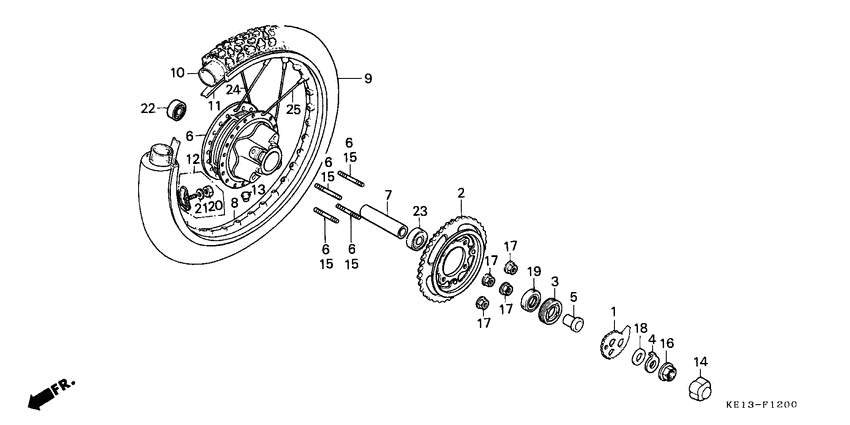

Rear wheel complete assy

Honda MTX200

Rear wheel complete assy

Rear wheel complete assy

2

3

4

5

6

6

6

6

6

7

8

9

9

10

10

11

11

12

13

14

15

15

15

15

16

17

17

17

17

18

19

20

21

22

23

24

25

#

oem код

название

цена

2

Sprkt,final(45t)

Sprkt,final(45t)

3

Retainer,bearing

Retainer,bearing

4

Washer,rr.axle

Washer,rr.axle

5

Collar,r.r.wheel

Collar,r.r.wheel

6

42610-KE1-000ZA

Hub rr.*nh-105*

Hub rr.*nh-105*

7

Втулка

Втулка

8

Rim,rr.wheel

Rim,rr.wheel

9

Tire,rr.

Tire,rr.

9

Tire,rr.

Tire,rr.

10

Tube (100/100-18)

Tube (100/100-18)

замена

Tube (3.25/3.50-18)

Tube (3.25/3.50-18)

10

Tube,tire

Tube,tire

замена

Tube3251350-18tr6

Tube3251350-18tr6

11

Flap, tire (1.40x18)

Flap, tire (1.40x18)

11

Flap,x-18a

Flap,x-18a

12

Stopper, bead (1.85)

Stopper, bead (1.85)

13

Крышка

Крышка

14

Cap, axle nut

Cap, axle nut

15

Bolt,stud,10x48

Bolt,stud,10x48

16

Гайка (14mm)

Гайка (14mm)

17

Гайка(10mm)

Гайка(10mm)

18

Washer,rr.axle

Washer,rr.axle

19

Oil seal,23x36x7

Oil seal,23x36x7

20

94001-080-000-S

Гайка

Гайка

HEX., 8MM

21

Шайба

Шайба

SPRING, 8MM

22

Bearing (6202u)

Bearing (6202u)

23

Bearing (6302uu)

Bearing (6302uu)

замена

Bearing (6302u)

Bearing (6302u)

24

97508-691-72Q-0

Spoke set b 8x166

Spoke set b 8x166

25

97658-691-71Q-0

Spoke bs,8x165.5

Spoke bs,8x165.5
