Front wheel + disc для мотоциклов Honda GL500I Silver Wing Interstate (1981)

Москва и регионы России

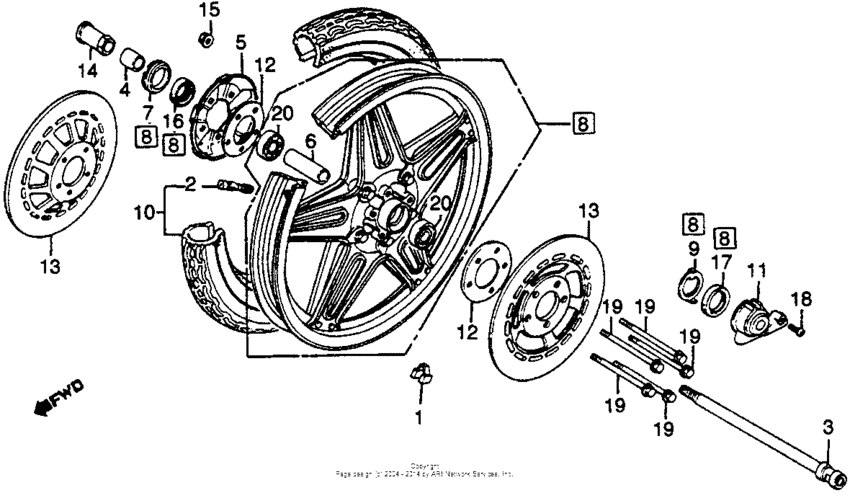

Front wheel + disc

Honda GL500I Silver Wing Interstate

Front wheel + disc

Front wheel + disc

1

1

2

3

4

6

7

8

8

8

8

8

9

10

10

11

12

12

13

13

14

15

16

17

18

19

19

19

19

19

20

20

#

oem код

название

цена

1

Ballance (30g)

Ballance (30g)

1

Балансир

Балансир

2

Клапан, обод колеса

Клапан, обод колеса

3

Axle,fr.wheel

Axle,fr.wheel

4

Втулка

Втулка

6

Collar, fr

Collar, fr

7

Retainer fr wheel

Retainer fr wheel

8

Wheel.comp.fr

Wheel.comp.fr

9

Retainer, gear box

Retainer, gear box

10

Tire assy.,fr.

Tire assy.,fr.

10

Tire (3.50s19) (4pr)

Tire (3.50s19) (4pr)

11

Box,s/meter gear

Box,s/meter gear

12

Shim, damping

Shim, damping

13

Disk,fr.brake

Disk,fr.brake

14

Nut,axle,12mm

Nut,axle,12mm

15

Nut, flange (self-lock) (m8x1.25)

Nut, flange (self-lock) (m8x1.25)

16

Dust,seal

Dust,seal

17

Dust seal (40x50x5)

Dust seal (40x50x5)

18

Screw, oval (5x16)

Screw, oval (5x16)

19

Bolt,flange 8x104

Bolt,flange 8x104

20

Bearing (6302uu)

Bearing (6302uu)
