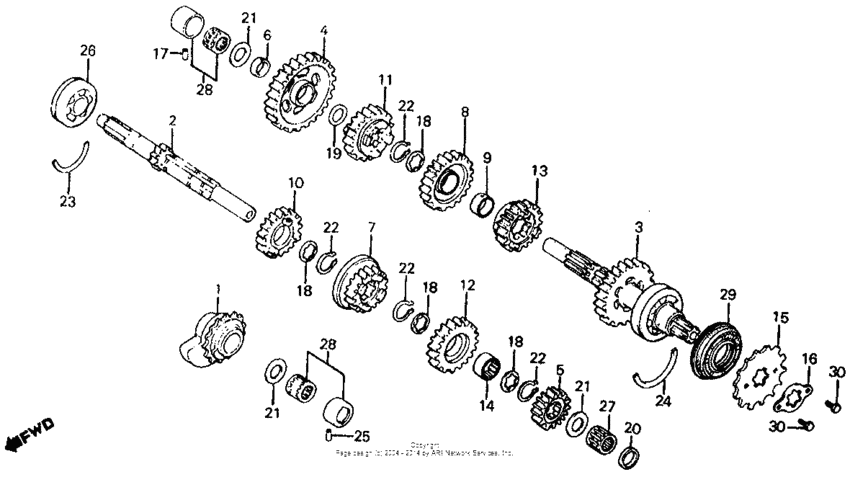

Transmission + rear balancer

Honda FT500

Honda
Transmission + rear balancer
#oem кодцена
1
13420-MC8-000
Weight, rr. balancer
2
23210-435-730
Mainshaft,trans.
3
23220-MC8-000
C/shaft,transmiss
4
23411-429-000
Gear,ct/shaft,low
5
23421-MC8-000
Gear,main.second
6
23422-428-000
Bush,20mm
7
23441-MC8-000
Gear,m/shaft thir
8
23451-MC8-000
Gear,ct/shaft 3rd
9
23452-MC8-000
Bush,25mm
10
23461-MC8-000
Gear,m/shiaft fou
11
23471-MC8-000
Gear,c/shaft four
12
23481-MC8-000
Gear,m/shaft fift
13
23491-MC8-000
Gear,c/shaft fift
14
23492-MC8-000
Bush,spline
15
23801-MC8-000
Sprocket,drive
16
23811-292-000
Plate,fixing
17
24261-283-000
Штифт
18
90451-413-000
Шайба
19
90454-428-000
Washer, thrust, 20mm
20
90454-429-000
Spacer,20mm
21
90458-292-000
Washer, thrust, 20mm
22
90601-107-000
Стопорное кольцо (25mm)
23
90601-393-000
Ring,set,56mm
24
90602-428-000
Ring,set,62mm.
25
90705-428-010
Pin,set bearing
26
91007-438-003
Подшипник (63/22)
замена
91011-428-008
Подшипник
27
91011-P48-008
Подшипник
28
91023-MM4-003
Bearing (20x34x16.8)
29
91206-KB7-005
Oil seal,34x62x14
30
92101-06012-0A
Болт
30
9210106012
Болт
