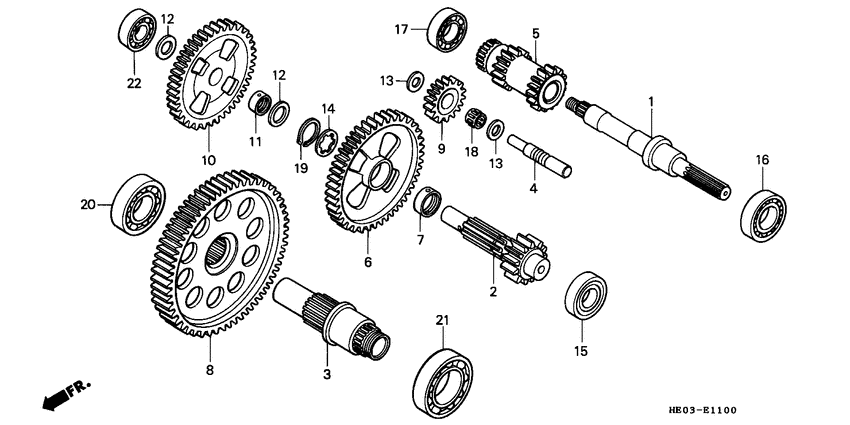

Reduction gear

Honda FL400R

Honda
Reduction gear
#oem кодцена
1
23211-HE0-000
Shaft,primary
2
23220-HE0-000
Shaft,counter
3
23231-HE0-000
Shaft,final
4
23241-HE0-000
Shaft,reverse idl
5
23410-HE0-000
Gear,comp primary
6
23421-HE0-000
Gear,counter driv
7
23422-HE0-000
Collar,28x32x11
8
23431-HE0-000
Gear,final
9
23521-HE0-000
Gear,revers idle
10
23531-HE0-000
Gear,revers drive
11
23532-HE0-000
Collar,17x21x10
12
90403-KE7-000
Washer, thrust, 17.2mm
13
90462-107-000
Шайба
замена
90441-KM7-700
Шайба упорная
14
90458-HE0-000
Washer,thrust 28m
15
91009-HC0-003
Bearing (63/28)
замена
91001-383-013
B/brg rad n/com
16
91007-HE0-004
Brg,ball 32x65x14
17
91008-HE0-000
Brg,ball 35x62x12
18
91021-HE0-000
Brg,ndl 16x22x12
19
94510-28000
Circlip, external, 28mm
20
96100-620-700-0
Подшипник
21
96100-620-900-0
Brg,rad.
22
96120-630-301-0
B/brg,rad n/com
