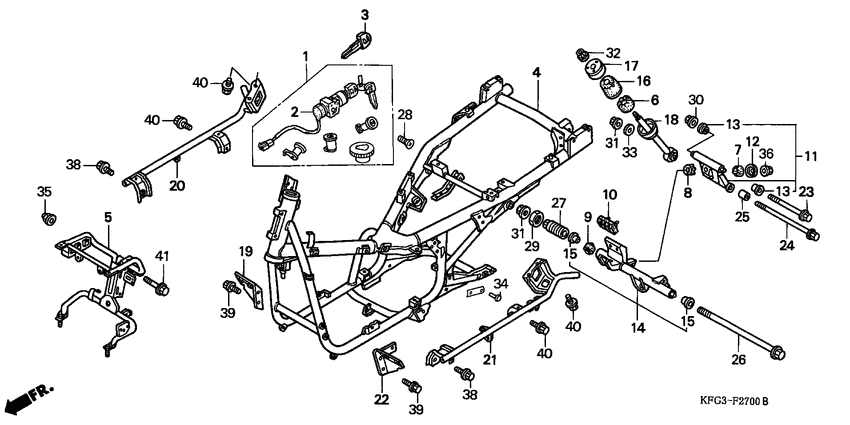

Frame body

Honda FES250 Foresight

Honda
Frame body
#oem кодцена
1
35010-KFG-611
Key set
2
35100-KFG-610
Switch assy.,comb
3
35121-KEE-630
Key,blank
4
50100-KFG-900
Body comp,frame
5
50310-KFG-010
Stay,fr cover
6
50352-GA7-000
Rubber, eng hgr stpr
7
50352-GE0-000
Rubber, eng hgr stpr
8
50352-KJ9-000
Rubber, eng hgr stpr
9
50352-KM1-000
Отбойник
10
50352-KS4-000
Отбойник
11
50355-KFG-000
Brkt sub assy b,e
12
50356-KM1-000
Cap, stopper rubber
13
50357-KM1-310
Bearing b, eng hgr
14
50365-KFG-000
Brkt sub assy a,e
15
50367-KS4-310
Bearing a, eng hgr
16
50373-KAB-000
Rubber b, stopper
17
50374-KAB-000
Stopper, tension rod
18
50380-KFG-000
Rod, tension
19
50605-KFG-000
Stay r,innercover
20
50610-KFG-000
Stay comp,r floor
21
50620-KFG-000
Stay comp,l floor
22
50655-KFG-000
Stay l,innercover
23
90105-KAB-000
Bolt, flg (10x167)
24
90106-KFG-000
Bolt, flg (12x290)
25
90107-KAB-770
Collar, eng hgr bolt
26
90108-KFG-000
Bolt flange 12x44
27
90121-KAB-000
Гайка
28
90164-KEE-630
Screw,flat 6x12
29
90304-GB4-680
Nut c, steering stem
30
90304-GE8-003
Nut, u, 10mm
31
90306-KF0-003
Nut, flange, 12mm
32
90309-428-731
Nut, flange (self-lock) (m8x1.25)
замена
90309-KF0-003
Nut, flange, 8mm
33
90501-KAB-000
Washer, tension rod
34
90841-001-000
Голвка вилта
35
90443-107-000
Гайка, 8mm
36
94070-08080
Nut-washer
38
95701-060-120-0
Болт
39
95701-060-160-8
Болт
40
95701-0801600
Bolt, flange, 8x16
41
95701-0804000
Bolt, flange, 8x40
