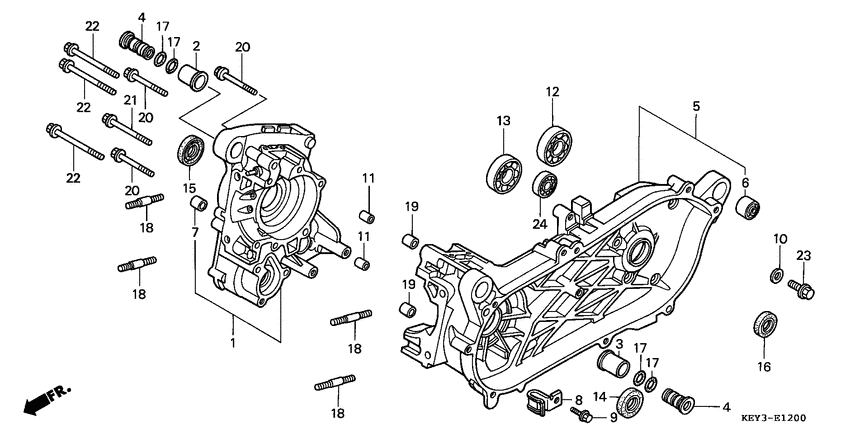

Картер двигателя

Honda FES150 Pantheon

Honda
Картер двигателя
#oem кодцена
1
11100-KEY-900
Crankcase comp.
2
11103-KJ9-750
Bush, r. eng hgr
3
11104-KJ9-751
Bush, l. eng hgr
4
11105-KAB-000
Bush, engine hanger
5
11200-KFF-305
Crankcase comp.
6
11203-KAB-000
Bush, shock absorber
7
11205-GAH-003
Втулка
8
32911-KFF-900
Clip,start motor
9
90002-GAV-701
Болт (6x18)
10
90488-700-000
Washer a, 8mm
11
90601-KFF-900
Pin,dowel 10x25
12
91001-GF6-004
Bearing, radial ball, 6304
замена
91001-035-008
Подшипник
13
91005-KS4-003
Bearing (62/22)
14
91201-KFF-901
Oil seal,27.4x41x
15
91202-KFF-901
Oil seal,29.4x43x
16
91251-KM1-003
Oil seal (22x35x5)
17
91304-MJ0-003
O-ring, 15.8x2.4 (showa)
18
92900-08040-0B
Болт
19
94301-10120
Палец
20
95701-0606000
Bolt, flange, 6x60
21
95701-0607500
Bolt, flange, 6x75
22
95701-0608500
Bolt, flange, 6x85
23
95701-0801200
Bolt, flange, 8x12
24
96100-620-230-0
B/brg rad n/com
