Rear wheel complete assy для мотоциклов Honda FES150 Pantheon (2004)

Москва и регионы России

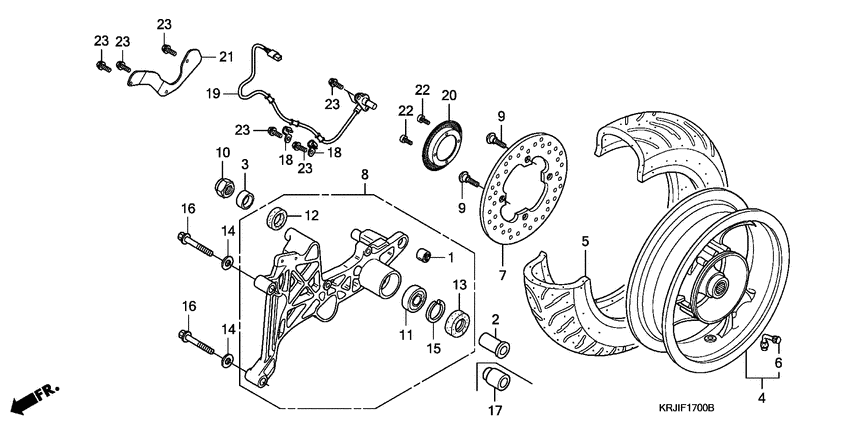

Rear wheel complete assy

Honda FES150 Pantheon

Rear wheel complete assy

Rear wheel complete assy

1

3

4

4

4

5

5

6

7

7

8

8

8

9

9

9

9

10

10

11

12

13

14

14

15

16

16

17

17

18

18

19

20

21

22

22

23

23

23

23

23

23

#

oem код

название

цена

1

Bush, rr. (lower)

Bush, rr. (lower)

3

Collar b, rr. axle

Collar b, rr. axle

4

42650-KRJ-790ZA

Wheel sub assy.

Wheel sub assy.

RR. *NH365M*

4

42650-KRJ-760ZA

Wheel sub assy.

Wheel sub assy.

RR. *NH365M*

4

42650-KRJ-900ZA

Wheel sub*nh295m*

Wheel sub*nh295m*

5

Tire,rear(irc)

Tire,rear(irc)

5

Tire,rear(bs)

Tire,rear(bs)

6

Valve rim rr

Valve rim rr

7

Disk

Disk

RR. BRAKE

7

Диск задний тормозной

Диск задний тормозной

замена

Диск задний тормозной

Диск задний тормозной

8

Swingarm assy.

Swingarm assy.

8

Swingarm assy.

Swingarm assy.

8

Swingarm assy

Swingarm assy

9

Bolt, fr. (8x24)

Bolt, fr. (8x24)

9

Болт (8x24)

Болт (8x24)

10

Гайка М16

Гайка М16

10

Гайка М16

Гайка М16

11

Bearing (6303)

Bearing (6303)

12

Dust seal, 37x25x6

Dust seal, 37x25x6

13

Валик

Валик

14

Washer, plain, 10mm

Washer, plain, 10mm

15

Circlip, internal, 47mm

Circlip, internal, 47mm

16

Bolt, flange, 10x60

Bolt, flange, 10x60

17

Кольцо

Кольцо

RR. AXLE

17

Collar a,rr axle

Collar a,rr axle

18

Зажим

Зажим

19

Датчик

Датчик

RR. WHEEL SPEED

20

Кольцо

Кольцо

FR. PULSER

21

Крышка

Крышка

SPEED SENSOR

22

Болт (5x10)

Болт (5x10)

23

96001-060-140-0

Болт

Болт

FLANGE, 6X14
