Footpegs для мотоциклов Honda CX650 (1983)

Москва и регионы России

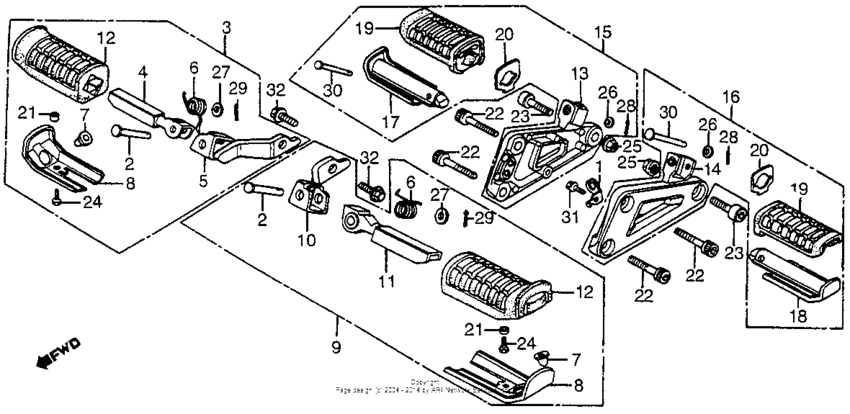

Footpegs

Honda CX650

Footpegs

Footpegs

1

2

2

3

4

4

5

6

6

7

7

8

8

9

9

10

11

11

12

12

12

12

13

14

15

16

17

18

19

19

20

20

21

21

22

22

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

31

32

32

#

oem код

название

цена

1

Stay,stop switch

Stay,stop switch

2

Палец

Палец

3

Step,r.main

Step,r.main

4

Bar comp.,r.step

Bar comp.,r.step

Use up to Frame SN DM009600

4

Bar comp,r.step

Bar comp,r.step

Use from Frame SN DM009601

5

Arm comp.,r.step

Arm comp.,r.step

6

Spg.,step return

Spg.,step return

7

Slider, step

Slider, step

8

Stopper,step rub

Stopper,step rub

9

Footpeg, l. main

Footpeg, l. main

Use up to Frame SN DM009600

9

Step assy.,l.main

Step assy.,l.main

Use from Frame SN DM009601

10

Arm comp.,l.step

Arm comp.,l.step

11

Bar, l. footpeg

Bar, l. footpeg

Use up to Frame SN DM009600

11

Bar comp.,l.step

Bar comp.,l.step

Use from Frame SN DM009601

12

Bar comp.,r.step

Bar comp.,r.step

Use up to Frame SN DM009600

12

Rubber,main step

Rubber,main step

Use from Frame SN DM009601

13

Hold,r.pillion

Hold,r.pillion

14

Hold,l.pillion

Hold,l.pillion

15

Step,r.pillion

Step,r.pillion

16

Footpeg, l. pillion

Footpeg, l. pillion

17

Bar.r.p/step

Bar.r.p/step

18

Bar.l.p/stem

Bar.l.p/stem

19

Rubber, pillion step

Rubber, pillion step

20

Washer, pillion step

Washer, pillion step

21

Colr, buzzer setting

Colr, buzzer setting

22

Bolt, socket (8x28)

Bolt, socket (8x28)

23

Болт (10x25)

Болт (10x25)

24

Болт

Болт

HEX., 6X16

25

Гайка

Гайка

FLANGE, 10MM

26

Шайба

Шайба

PLAIN, 6MM

27

Шайба

Шайба

PLAIN, 8MM

28

Pin, split, 1.6x10

Pin, split, 1.6x10

29

Штифт

Штифт

30

Pin c

Pin c

31

95701-060-100-0

Болт

Болт

FLANGE, 6X10

32

95701-100-200-0

Болт

Болт

FLANGE, 10X20
